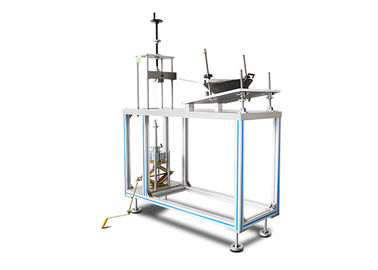

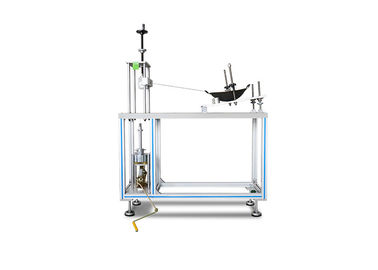

Handle Pull Resistance Tester Cookware Corrosion Testing Machine
APPLICATIONS& TEST PURPOSE:
The machine is used to perform pull strength of handle under specify height and impact weight.
DESIGN STANDARD: CEN/TS 12983-2
STANDARD FEATURES:
| Steel impact hammer, having a mass of 1 kg ± 50 g. |
| Metal guide for dropping the hammer through a distance of (150 ± 5) mm so that it falls vertically, essentially without friction, to a stop. The guide and stop shall have a mass of 10 kg ± 50 g. |
| Means of attaching the test piece to a rigid support in a horizontal plane, e.g. a 'G' clamp, which prevents any movement of the test piece. |
| Means of transferring the force generated by dropping the hammer onto the metal guide to the test piece handle so that said force acts parallel to the pan base. |
STANDARD PARAMETERS:
1. Attach the cookware to the support and adjust the handle to horizontal.
2. Attach the guild to the cookware handle so that a rigid fixing is obtained
3. Position the impact hammer 150 mm ±5 mm above the stop and allow it to fall freely.
Examine the security of the fixing system and note any deterioration.
