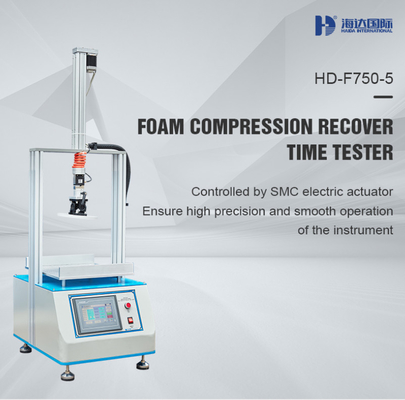

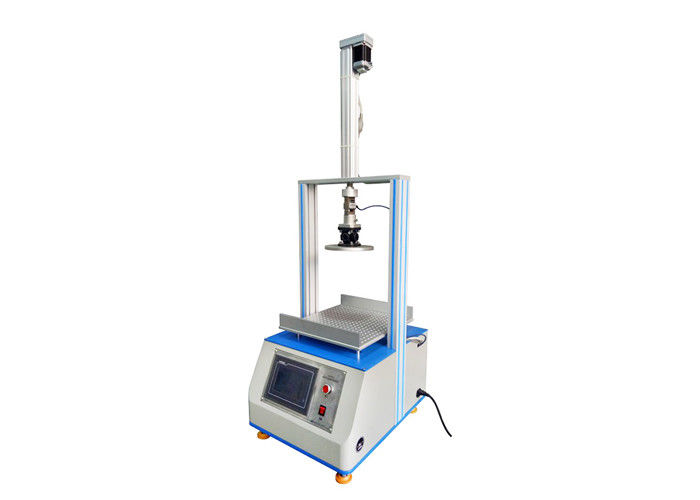

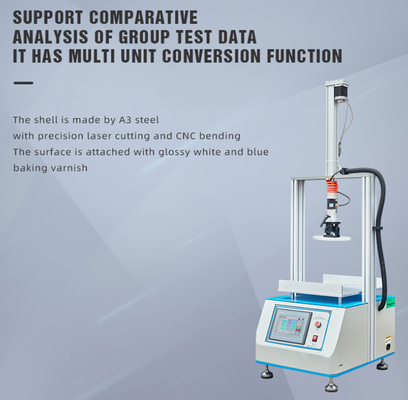

Foam Compression Hardness Recover Time Test Machine

Brand Name:	HAIDA
Model Number:	HD-F750-5
MOQ:	1set
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Control And Display:

PLC+LCD

Capacity:

200KG

Up Plate:

Diameter 200mm, Bottom Fillet R1mm

Low Plate:

400*400mm, Holes Diameter 6mm, Space 20mm

Test Sample Size:

380*380*100mm

Highlight:

furniture testing equipment

fatigue testing equipment

Product Description

Foam Compression Hardness Recover Time Test Machine

Applications & Test Purpose:
This machine is used to determine the recovery time of the slow recovery (viscoelastic) foams. ASTM D3574 is a commonly used standard for tests involving flexible cellular foam materials. Test M specifies a method for measuring the recovery time of slow recovery (viscoelastic) foams, like memory foam. It is an important test in the mattress industry.
Design Standard : ASTM D 3574-2008

Test Procedures:

1. Prepare and condition the test specimen according to the geometries and guidance described in the test standard for IFD testing.

2. Place the specimen onto the perforated base compression platen. Lower the circular top platen onto the top of the specimen to apply a small preload and identify specimen thickness.

3. Indent the specimen to 75% of its original thickness at the speed referenced in the test standard.

4. After a specified dwell time, remove the circular top platen quickly to the specified deflection (close to original height), and record how much time it takes for foam to contact the top platen.

Standard Features:

Control and display	PLC+LCD
Sensor	Load cell
Capacity	200KG
Unit	N
Up plate	Diameter 200mm, bottom fillet R1mm
Low plate	400*400mm, holes diameter 6mm, space 20mm
Test Sample Size	380380100mm
Test speed	1000 + 100 mm/min
Motor	Servo motor
Driver	Electric actuator
Power	Single phase, 220V, 50Hz
Weight	160KG

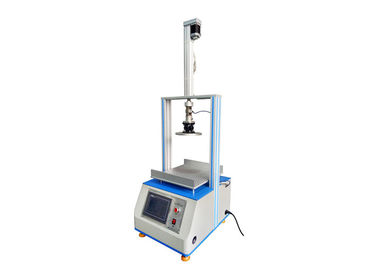

Foam Compression Hardness Recover Time Test Machine 0

Generl Specifications
Packaging Dimensions: (W*D*H) 700*920*1200MM
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 160kg
HS Code: 9024800000
