Easy Operation Programmable Salt Spray Corrosion Testing Chamber
  • name
  • name
  • name
  • name
  • name
  • name

Easy Operation Programmable Salt Spray Corrosion Testing Chamber

Brand Name: HAIDA
Model Number: HD-E808-60
MOQ: 1 units
Price: USD 2000-5000
Packaging Details: wooden case
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ISO
Chamber Material:
P.V.C Rigid Plastic Plate, Thickness 8mm
Temperature Range:
Room Temperature ~ 55℃
Temperature Fluctuations:
≤±0.5℃
Temperature Uniformity:
≤±2℃
Supply Ability:
20 units per month
Highlight:

corrosion testing equipment

,

salt spray testing equipment

Product Description

Programmable Salt Spray Cycling Test Chamber For Corrosion Test





Introduction:

Salt spray test chamber is used to test the anti-corrosion quality of all the materials surfaces of painting, coating, electroplating in condition of salt spray environment. Salt spray chambers are available in SS series and CCT series. SS chambers are salt spray chambers meet ASTM-B117, ISO, IEC and other International Standards test methods.



Standard Parameters:

Model HD-E808-60
Internal Size (W*D*H) 600*450*400mm
External Size (W*D*H) 1060*580*1050mm
Chamber material P.V.C rigid plastic plate, thickness 8mm
Sample tray

Diameter 10mm glass fiber rod, anti-rust

V-shape plastic steel to make sure sample in 15~30 degree inclined
Temperature Range Room temperature ~ 55℃
Temperature Fluctuations ≤±0.5℃
Temperature Uniformity ≤±2℃
Temperature Precision ±1℃
Spraying method Continuous and Periodic spray type
Test Chamber Temperature Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature 35℃±1℃
Spray Quantity 1.0~2.0 ml / 80cm2 / hr
PH value Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume 108L
Brine Tank Capacity 25L
Multiple Safety Protection Devices Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source 1HP Air pump (provided by buyer)
Test criteria ASTM B117-08, ISO 9227



Standard features of Salt Spray Chamber:

1.Temperature measure and control

2.Humidity measure and control

3.Salt Fog measure and control

4.Safety protection system

5.Easy operation friendly interface

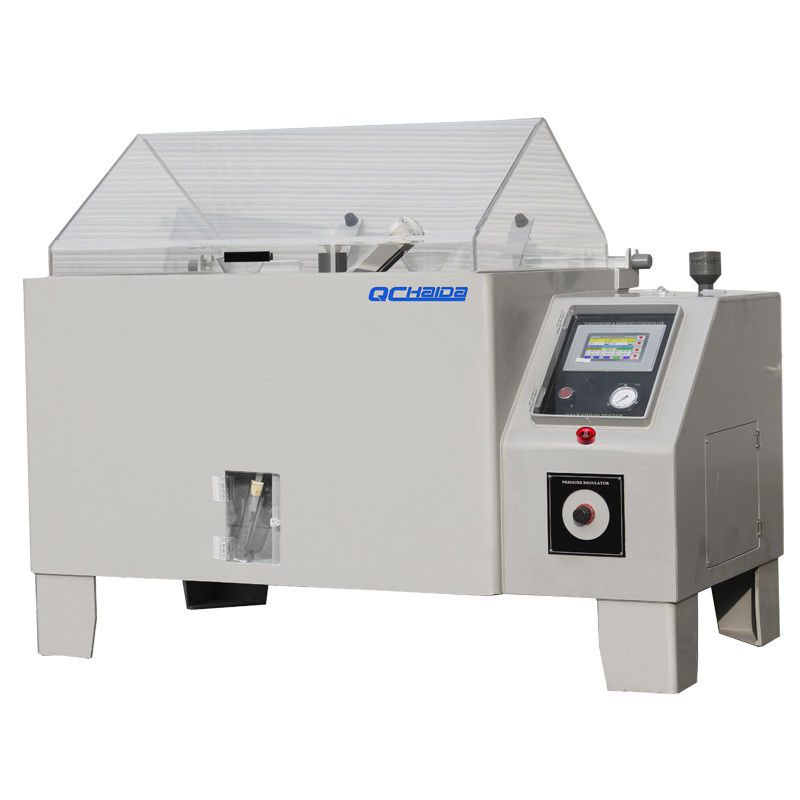

Easy Operation Programmable Salt Spray Corrosion Testing Chamber 0

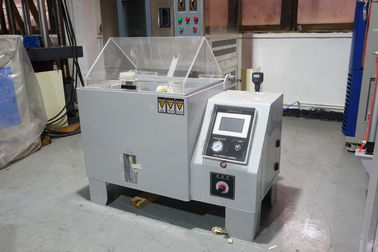

Easy Operation Programmable Salt Spray Corrosion Testing Chamber 1

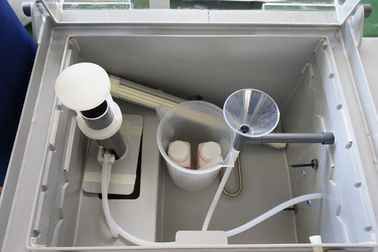

Easy Operation Programmable Salt Spray Corrosion Testing Chamber 2
