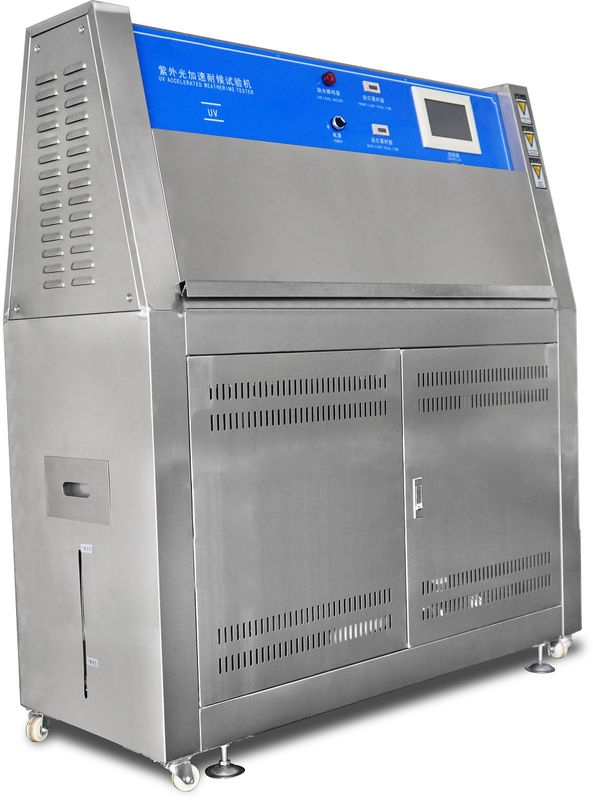

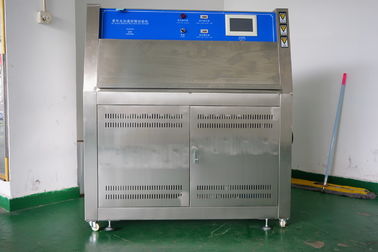

PC Control Programmable UV Lamp Chamber For Aging Simulation Test

China Dongguan Haida Equipment Co.,LTD certification
China Dongguan Haida Equipment Co.,LTD certification
The instruments you recommend are very suitable for the testing needs of our laboratory products, after-sale is very patient to answer all our questions, and guide us how to operate, very nice.

—— Div Harish

You are very professional partners and we are willing to establish long-term cooperative relations with you.

—— Wojtek Krawczyk

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Manuel Munoz

I'm Online Chat Now

PC Control Programmable UV Lamp Chamber For Aging Simulation Test

PC Control Programmable UV Lamp Chamber For Aging Simulation Test
PC Control Programmable UV Lamp Chamber For Aging Simulation Test
video play

Large Image :  PC Control Programmable UV Lamp Chamber For Aging Simulation Test

Product Details:
Place of Origin: China
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-E802
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: USD 2000-5000
Packaging Details: wooden case
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 units per month
Detailed Product Description
Temperature Resolution: 0.1℃ Light Temperature Range: 50℃~70℃
Condensation Temperature Range: 40℃~60℃ Controller: Programmable Controller, LCD Touch Screen
High Light:

humidity temperature test chamber

,

temperature and humidity chamber

PC Control Programmable UV Lamp Test Chamber For Aging Simulation Test





Introduction:

UV aging test chamber can simulate the sun, rain and dew to damage the material, UV machine using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a

certain environment which the light and moisture are alternating.





Standard Features:

Model HD-E802
Studio size 1140 * 400 * 380mm(W*H*D)
Overall dimension 1300 * 500 * 1460 mm(W*H*D)
Center distance of the lamp 70mm
The distance between the specimen and the lamp The distance between the specimen and the nearest parallel surface of the lamp surface is about 50mm
Wavelength range UV-A
wavelength range 315 to 400 nm
The radiation intensity within 1W/m2/340nm
Temperature resolution 0.1℃
Light temperature range 50℃~70℃ / temperature tolerance is ±3℃
Condensation temperature range 40℃~60℃ / temperature tolerance of ±3℃
Measuring range of blackboard thermometer 30~80℃ / tolerance is ±1℃
Temperature control mode PID self - tuning temperature control mode
Humidity range about 45%~70% r.h.
Water tank requirements water depth not more than 50mm, and with an automatic water supply controller
Standard specimen size 75×150mm 48pcs
Recommended operating environment 5~35℃, 40%~85%R•H, 300mm away from the wall
Voltage 220V±5%
Power supply single-phase three-wire, 50Hz, 10A, required 15A leakage switch





Test Criteria:

ISO 4892-3

ASTM G154





Standard configuration:
1, The installation of the UV lamp 8 on both sides of the studio;
2, The number of sample holder clamps: 20
3, The sample rack clamps Dimensions: 404 & times; 105 (mm)
4, Using the back of the scroll type drainage system and drainage U-shaped plot sinks
5, The surface of the sample and the UV lamp distance of 50 mm and a plane parallel to
6, The actual studio by the test sample holder and constitutes inside walls, trapezoidal
7, Tank water level automatic replenishment;
8, The bottom chamber can be fixed with high quality PU wheels;
