|Distance Between Clamps:||7.0 ± 0.25 Mm||Tearing Distance:||43 ± 0.15m|
|Slit Size:||20 ± 0.2 Mm||Blade:||Steel|
fabric checking machine,
textile industry equipment

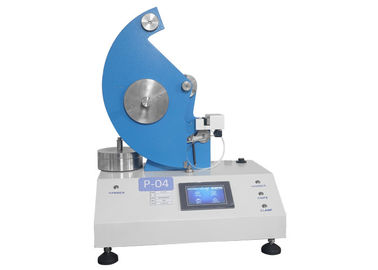

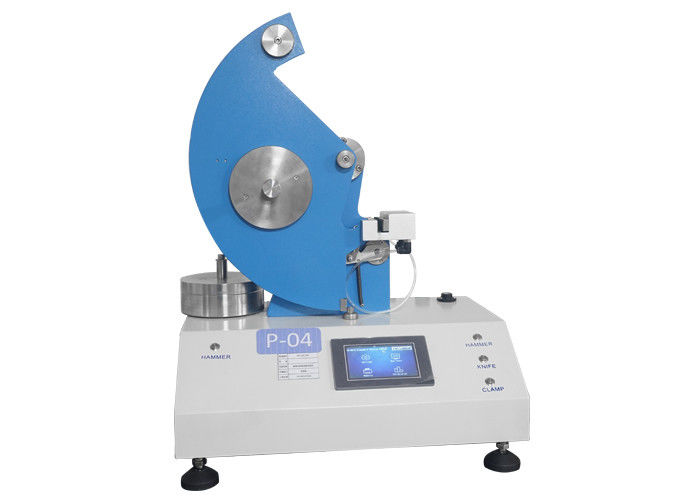

Elmendorf Tearing Tester Steel Woven Fabrics Textile Tear Testing Eequipment
Elmendorf Tearing Tester to determine the ballistic tearing strength of woven fabrics, plastic films, paper, or other similar materials.
Textile: ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17
Plastics: ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141
Nonwovens: ASTM D5734, WSP 100.1
Paper: APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128,EN 21974,ISO 1974
1.Latest design with modern sophisticated look.
2.Pneumatic operated clamping and pendulum release ensures repeatable test result.
3.The built-in microcomputer handles all calculations and set-up functions.
4.Tearing force displayed digitally.
5.Easily interchangeable pendulums.
6.Selectable units:newtons,grams-force,millinewtons,lbs-force,percentage of pendulum capacity.
7.Easy to calibrate using the check weights(optional).
8.PC & PRINTER connection.
9.Cutting template supplied for preparing samples.
10.Supplied with calibration & inspection certificates.
|Measuring pendulum range||
32N (By adding Augmenting weight)
64N (By adding Augmenting weight)
|Unit of measurement||CN, N , gf , lbf|
|Distance between Clamps||7.0 ± 0.25 mm|
|Tearing Distance||43 ± 0.15m|
|Slit Size||20 ± 0.2 mm|
|Tollerance range||20-80 % of each full scale, settable range or full scale|
|Angular resolution||high resolution digital optical encoder|
|Display||LCD display backlight|
|Data port||RS232 port for printer connection and 3 pin Mini-DIN connector for PC.|
|Statistics||Force min. max. mean, CV%, St. Deviation, Range%|
|Template Size||As per ASTM standard|
|Dimensions||490 x 430 x 680 mm|
|Power supply||220V, 50Hz|
1.Main Unit:01 No.
2.Augmenting weight for 32N:01 No.
3.Augmenting weight for 64N:01 No.
4.Spare Cutting Blade:01 No.
5.Specimen cutting template:01 No.
6.USB software:01 No.
7.Power Cord:01 No.
8.This User’s Manual:01 No.
9.Inspection & Conformance Certificate:01 No.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
