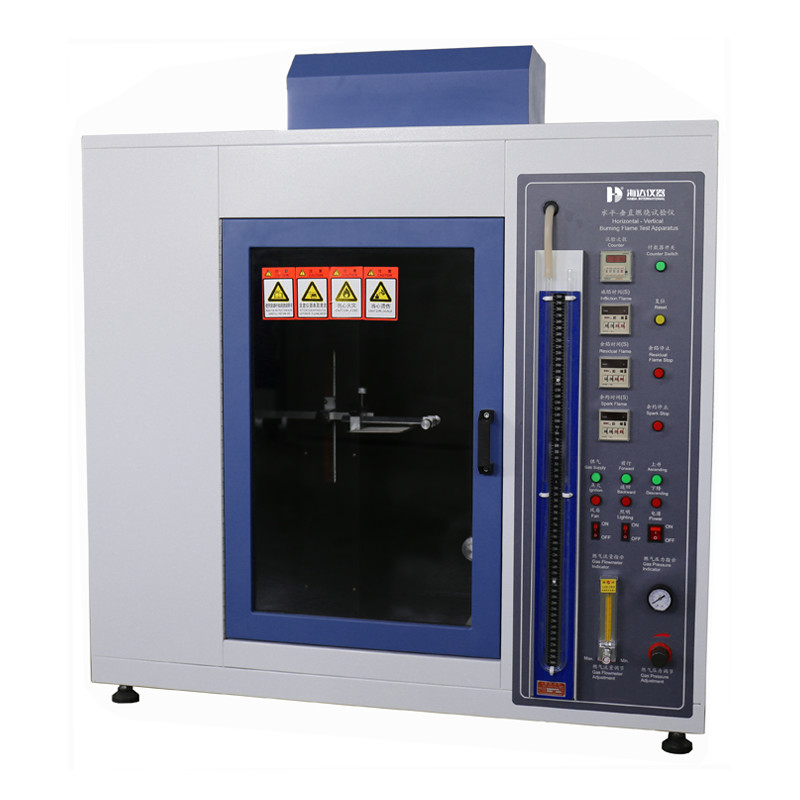

High-Performance PLC Control Horizontal & Vertical Burning Test Machine

Large Image : High-Performance PLC Control Horizontal & Vertical Burning Test Machine

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6018-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Power Supply:	AC 220V, 50Hz	Chamber Volume:	≥0.75 M³, With Glass Observation Door
Test Timing:	Adjustable: 0–99 Minutes 99 Seconds For: Flame Application Time, Afterflame Time, Afterglow Time	Burner Angle:	Adjustable: 20°, 45°, 90° (vertical)
Fuel Gas:	Industrial-grade Methane (≥98% Purity, User-provided)	Flame Height:	Adjustable: 20mm–175mm (standard-compliant)
Highlight:	Vertical Burning Test Machine , Horizontal Burning Test Machine

PLC Control Horizontal & Vertical Burning Test Apparatus

Description:

This apparatus is designed to evaluate the burning characteristics of plastic materials in accordance with UL 94 (Flammability of Plastic Materials for Parts in Devices and Appliances). It conducts horizontal and vertical flammability tests on plastic components.

Compliance Standards:

UL 94, GB/T 2408, IEC 60695-11-4, GB/T 5169.22, IEC 60695-11-3, GB/T 5169.15, IEC 60695-11-10, GB/T 5169.16, UL 60065

Featuring :

Motorized operation for safety and ease of use.
PLC + 7-inch color LCD touchscreen for intuitive control.
Built-in printer to record test conditions and results.

High-Performance PLC Control Horizontal & Vertical Burning Test Machine 0

Technical Parameters:

Model	6018-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller), with test data printer.
Display System	Real-time monitoring of ignition time, flame application time, afterflame time, afterglow time, and test cycles. Controls include fixture adjustment, gas supply, and ignition.
Chamber Volume	≥0.75 m³, with glass observation door
Test Timing	Adjustable: 0–99 minutes 99 seconds for: Flame application time, Afterflame time, Afterglow time
Burner Angle	Adjustable: 20°, 45°, 90° (vertical)
Burner Specifications	Nozzle inner diameter: Ø9.5±0.3mm; Effective length: 100±10mm; Equipped with air adjustment holes.
Fuel Gas	Industrial-grade methane (≥98% purity, user-provided).
Flame Height	Adjustable: 20mm–175mm (standard-compliant)
Key Features	Integrated lighting, exhaust system, gas flow/pressure regulators, pressure gauge, U-tube manometer, and sample fixture.
Power Supply	AC 220V, 50Hz
