Horizontal & Vertical Burning Test Apparatus

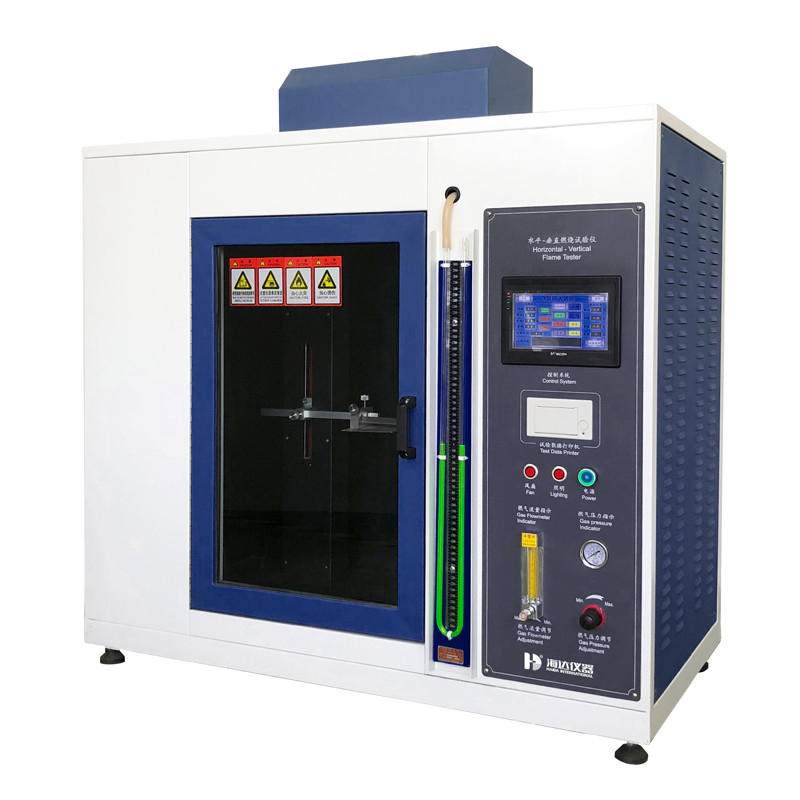

Large Image : Horizontal & Vertical Burning Test Apparatus

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6017-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Burner Angle:	Adjustable: 20°, 45°, 90° (vertical)	Fuel Gas:	Industrial-grade Methane (≥98% Purity, User-provided)
Flame Height:	Adjustable: 20mm–175mm (standard-compliant)	Key Features:	Integrated Lighting, Exhaust System, Gas Flow/pressure Regulators, Pressure Gauge, U-tube Manometer, And Sample Fixture
Dimensions (L×W×H):	126×70×130cm (including Casters)	Power Supply:	AC 220V, 50Hz
Highlight:	Horizontal Burning Test Apparatus , Vertical Burning Test Apparatus , Horizontal Vertical Burning Test Apparatus

Horizontal & Vertical Burning Test Apparatus

Description:

Horizontal & Vertical Burning Test Apparatus apparatus is designed to evaluate the burning characteristics of plastic materials in accordance with UL 94 (Flammability of Plastic Materials for Parts in Devices and Appliances).
It conducts horizontal and vertical flammability tests on plastic components,

Compliance Standards:

UL 94, GB/T 2408, IEC 60695-11-4, GB/T 5169.22, IEC 60695-11-3, GB/T 5169.15, IEC 60695-11-10, GB/T 5169.16, UL 60065, GB/T 5169.17-2017, IEC 60695-11-20

Featuring :

Motorized operation for safety and ease of use.
Gas flow meter for precise flame adjustment.

Horizontal & Vertical Burning Test Apparatus 0

Technical Parameters:

Model	6017-HD
Burner Angle	Adjustable: 20°, 45°, 90° (vertical)
Burner Specifications	Nozzle inner diameter: Ø9.5±0.3mm; Effective length: 100±10mm; Equipped with air adjustment holes.
Fuel Gas	Industrial-grade methane (≥98% purity, user-provided)
Flame Height	Adjustable: 20mm–175mm (standard-compliant)
Key Features	Integrated lighting, exhaust system, gas flow/pressure regulators, pressure gauge, U-tube manometer, and sample fixture.
Dimensions (L×W×H)	126×70×130cm (including casters)
Power Supply	AC 220V, 50Hz

ABOUT HAIDA

Horizontal & Vertical Burning Test Apparatus 1

Horizontal & Vertical Burning Test Apparatus 2

Horizontal & Vertical Burning Test Apparatus 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
