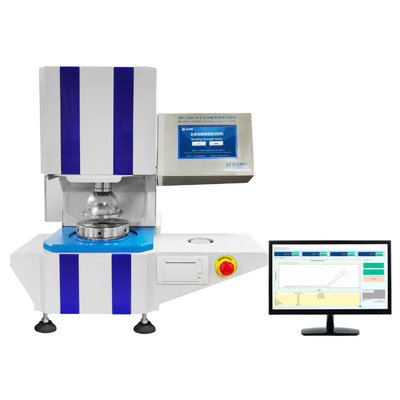

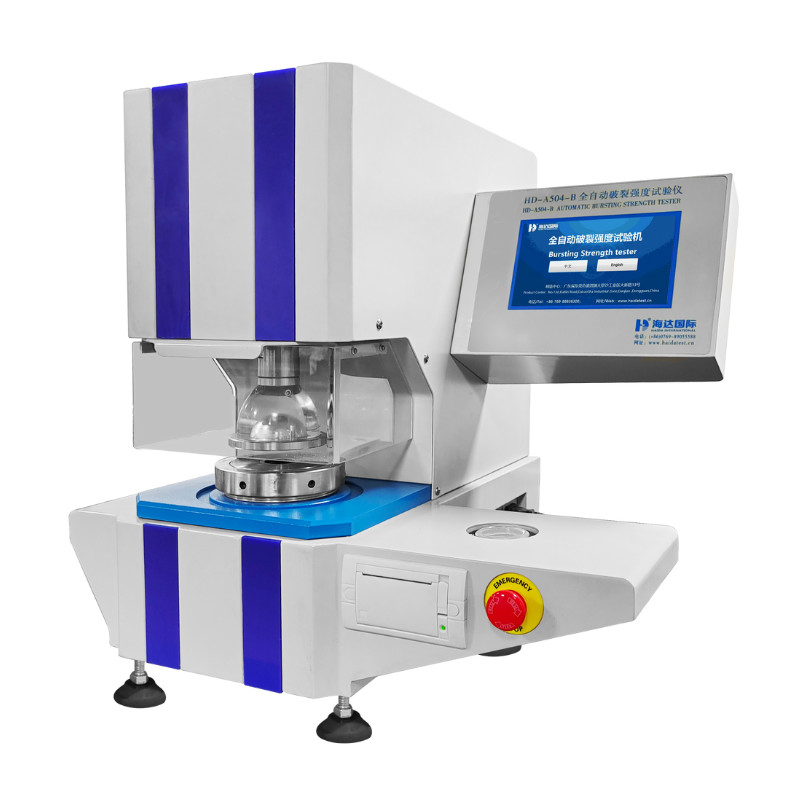

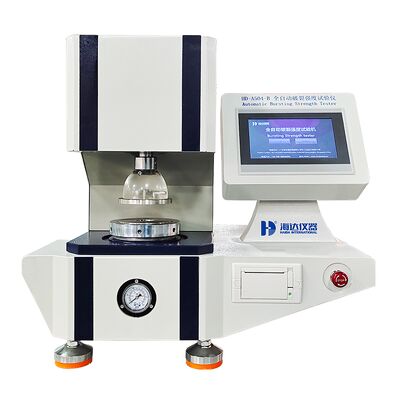

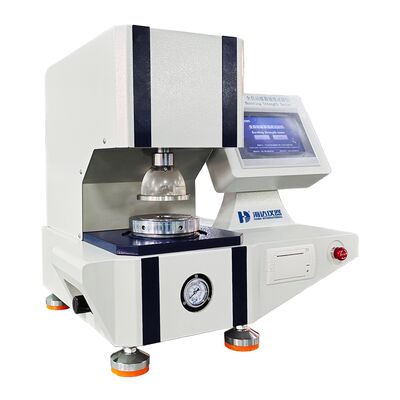

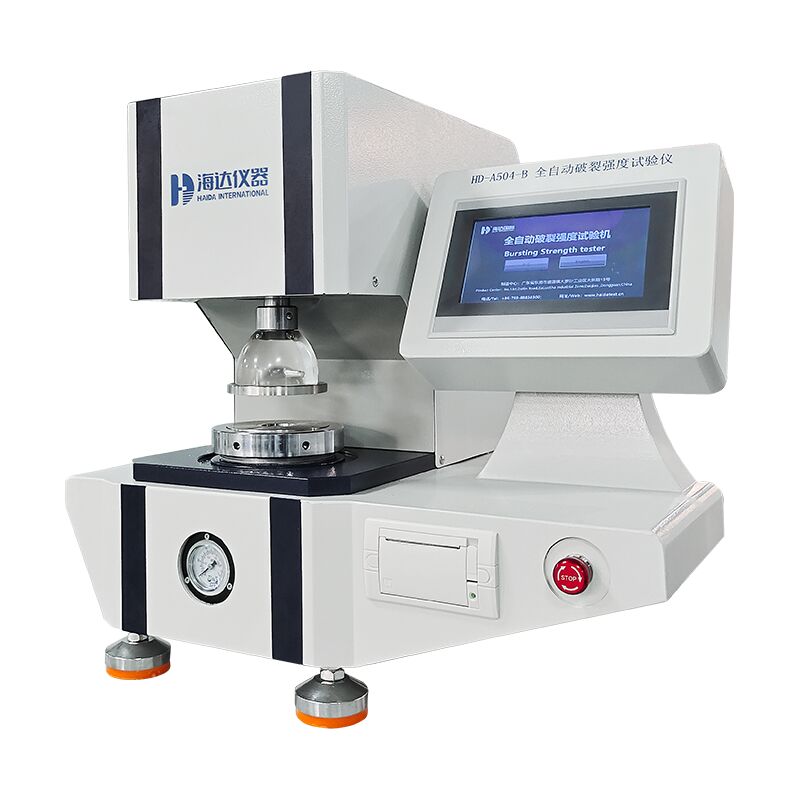

Computer Control Bursting Strength Tester For Precise Measurement

Large Image : Computer Control Bursting Strength Tester For Precise Measurement

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-A504-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Display:	LCD	Power:	Electric
Port:	ShenZhen	Capacity (Optional):	High Pressure 0~100 Kg/ Cm^2 (0.1kg/cm^2)
Accuracy:	± 0.5%
Highlight:	Computer Control Strength Tester , Computer Control Bursting Strength Tester

Automatic Corrugated Cardboard Bursting Resistance Strength Testing Equipment/Machine

HD-A504-B.pdf
Specifications
Corrugated Cardboard Bursting Testing equipments
1.Anti-vibration Motor 1/8 HP
2.Operation Method:Automatic
3.paper,cardboard testing

Introduction:
Corrugated Cardboard Bursting Testing equipment is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; Corrugated Bursting Testing equipments can also test cloth and synthetic leather. The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Corrugated Bursting Testing equipments' Accuracy has promoted 20 times more than the traditional gauge.

Uses:
Corrugated Cardboard Bursting Testing equipments is ideal for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.

Main technical parameters

Capacity (Optional)	High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit	Kpa, psi, kg/cm^2
Accuracy	± 0.5%
Pressure Range	250~5600kpa
Speed of Compression	High Pressure 170± 10ml/min
Specimen Clamping Force	>690kpa
Oil	100% silicon oil
Sensing method	Pressure Transmitter
Indicating Method	Digital
Display	LCD
Material of the Ring	Stainless Steel SUS304

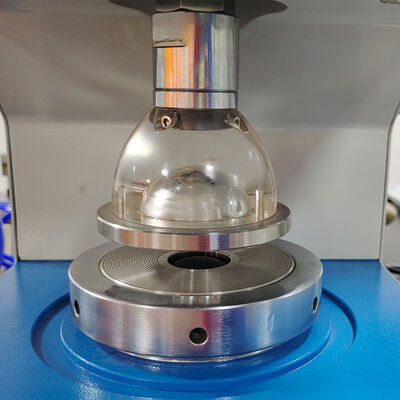

Opening in Upper Clamp	31.5 ± 0.05 mm Diameter
Opening in Lower Clamp	31.5 ± 0.05 mm Diameter
Motor	Anti-vibration Motor 1/8 HP
Operation Method	Automatic
Dimension (L×W×H)	445×425×525 mm
Weight	Approx. 70 kg
Power	Approx. 70 kg
Optional Configuration	Printer, Air Pump

Design standard:JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539

The Character:
Corrugated Cardboard Bursting Testing equipment is applicable to test bursting strength for paperboard.
Advanced micro computer controller and digital processor ensure result precise.
Printer facility and fully detailed test reports.
Results of the tests are stored for viewing or for printing out as required.
User-friendly menu interface
Power protection ensure automatic record when power cut off.
