Leather Suitcase Tester , Handle Jerk Fatigue Testing Machine

Leather Suitcase Tester , Handle Jerk Fatigue Testing Machine
Leather Suitcase Tester , Handle Jerk Fatigue Testing Machine Leather Suitcase Tester , Handle Jerk Fatigue Testing Machine

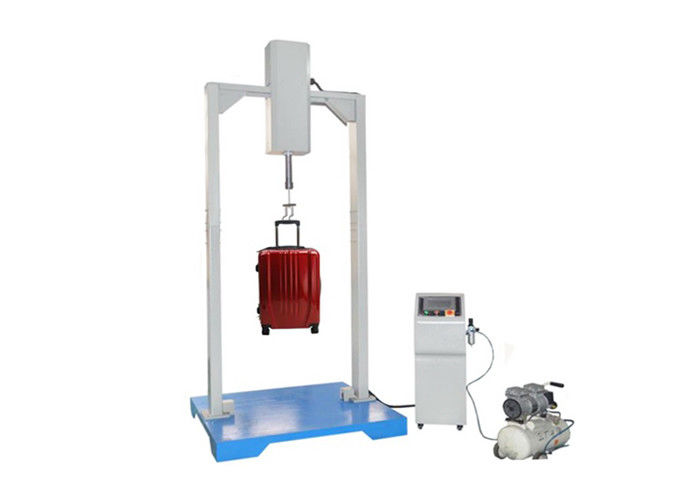

Large Image :  Leather Suitcase Tester , Handle Jerk Fatigue Testing Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-D114-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Test Speed: 10 ~ 30r / Min, Adjustable Test Stroke: 0-150mm ,adjustable
Weight: 250Kg Power Supply: 1, 220V/50Hz
High Light:

Abrasion Resistance Test Machine

,

Fatigue Testing Machine





Leather Suitcase Tester , Handle Jerk Fatigue Testing Machine



Specifications

Leather Case Handle Jerk Fatigue Testing Machine is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines



The usage

Leather Case Handle Jerk Fatigue Testing Machine is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines and the whole structure of luggages. The testing methods are as follows: First, Load the object with stated load weight. And then do the test to the specimen with the speed of 30 times per minute and the impact height of 4 inches for 2500 times. The tset result can be taken into consideration of quality improvement.



The main technical parameters:

Leather Case Handle Jerk Fatigue Testing Machine
Model HD-D114-2
Controler Touch screen operation
Design criteria QB/T2922-2007
Metal bracket height 2500mm;
Test stroke 0-150mm ,adjustable;
Maximum bearing weight 50kg
Vibration mode The impact device can move up and down, the suction cup noise reduction device, the suction cup has a pneumatic pressure noise reduction device, which can reduce unnecessary vibration of the test piece;
Damping spring constant (single) 17.54N / m (± 5%);
Test speed 10~ 30r / min can be adjusted;
Recording device with automatic recording function
Control method adjustable test speed, set the number of impact tests, and have an automatic shutdown function when the sample is dropped halfway
Power system pneumatic control
Machine size (L × W × H) 1400 × 1200 × 3250mm;
Weight 250Kg;
Power supply 1∮, 220V / 50Hz.



Leather Suitcase Tester , Handle Jerk Fatigue Testing Machine 0
