Automatic Air Permeability Fabric Textile Testing Equipment ISO Standard

China Automatic Air Permeability Fabric Textile Testing Equipment  ISO Standard supplier
Automatic Air Permeability Fabric Textile Testing Equipment  ISO Standard supplier

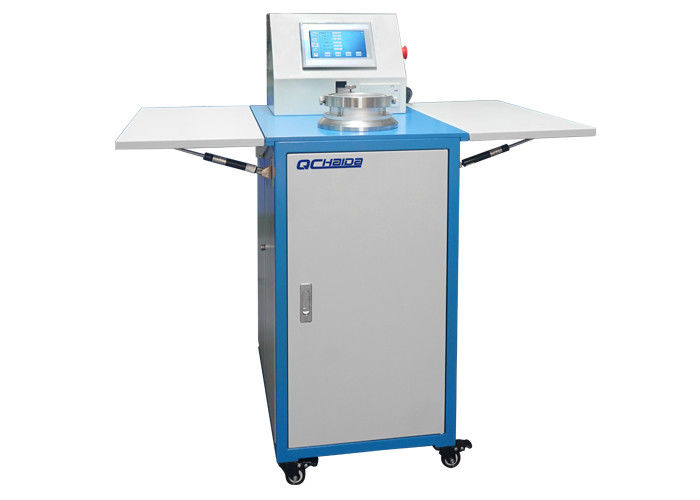

Large Image :  Automatic Air Permeability Fabric Textile Testing Equipment ISO Standard

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: GB/T12704 ASTM E90 JIS L1099 BS 7209
Model Number: HD-W810

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Supply Ability: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Contact Now
Detailed Product Description
Measuring Range: 0.1-12,000 Mm/s At 20 Cm² Test Area. Units Of Measure: Mm/s, M3/m2.min, Cm3/cm2.s, M3/m2.h, Cfm, L/dm2.min, L/m2.s
Test Pressure: 1-4,000 Pa Test Areas: 20, 25, 38.5 And 100 Cm²
Sample Thickness: 12mm Power Supply: 110V,60Hz
Weight: 75 Kg

 ISO Standard Automatic Air Permeability Testing Machine for Fabric Textile (HD-W810)



To determine the resistance of fabrics (woven, knitted and non woven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area.

ASTM D737 Standard Test Method for Air Permeability of Textile Fabrics
ISO 9237 Textiles - Determination of the Permeability of Fabrics to Air
BS 5636,DIN 53887,AFNOR G07-111,EDANA 140.1,ISO 7231,ISO 9073-15,JIS L1096-A
TAPPI T251, WSP 070.1.R3, EDANA 140.2-99

Technical parameters:


Measuring range 0.1-12,000 mm/s at 20 cm² test area.
Units of measure mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s
Measuring accuracy better than ± 2 % of the displayed value
Test pressure 1-4,000 Pa
Test areas 20, 25, 38.5 and 100 cm²
Sample thickness 12mm
Dimensions 1070 x 670 x 1080 mm
Power supply 110V,60Hz
Weight 75 Kg



1. Main Unit 01 No.
2. Test Heads 02 Nos.
20 cm²for DIN 53887, EN ISO 9237, WSP 70.1
38.5 cm²for ASTM D 737, JIS L 1096-A, TAPPI T 251, WSP 70.1
3. Air Permeability Tester Labcloud 01 No.
4. Calibration Check Plate 02 Nos.(ΦO=7.8 and ΦO=21.6 )
5. O-Ring for Air Seal 01 No.(pack of 5)
6. Nozzle 11 Nos.
7. Power Cord 01 No. Nozzle
8. This User's Manual 01 No.
9. Inspection & Conformance Certificate 01 No.


No. 0 1 2 3 4 5 6 7 8 9 10
ΦO(mm) 0.8 1.2 2 3 4 6 8 10 12 16 20


Automatic Air Permeability Fabric Textile Testing Equipment  ISO Standard



1.Test the conditioned specimens in the standard atmospherefor testing textiles, which is 21±1°C (70±2°F) and65±2 % relative humidity, unless otherwise specified in amaterial specification or contract order.

2. Handle the test specimens carefully to avoid alteringthe natural state of the material.

3. Place each test specimen onto the test head of the testinstrument, and perform the test as specified in the manufacturer’soperating instructions.

4. Place coated test specimens with the coated sidedown (towards low pressure side) to minimize edge leakage.

5. Make tests at the water pressure differential specifiedin a material specification or contract order. In the absence ofa material specification or contract order, use a water pressuredifferential of 125 Pa (12.7 mm or 0.5 in. of water).

6.Read and record the individual test results in SI units ascm³/s/cm² and in inch-pound units as ft³/min/ft² rounded tothree significant digits.
