| Heating Plate Size: | 50x110mm | Sample Size: | 40x100mm |
|---|---|---|---|
| Test Pressure: | 4kPa±1kPa | Test Time: | 0-999S |
| Heating Temperature Range: | RT~250ºC±2ºC | Working Voltage: | 220V 50HZ |
| Dimension: | 420x520x260mm | ||
| High Light: | fabric checking machine,textile testing instruments |
||

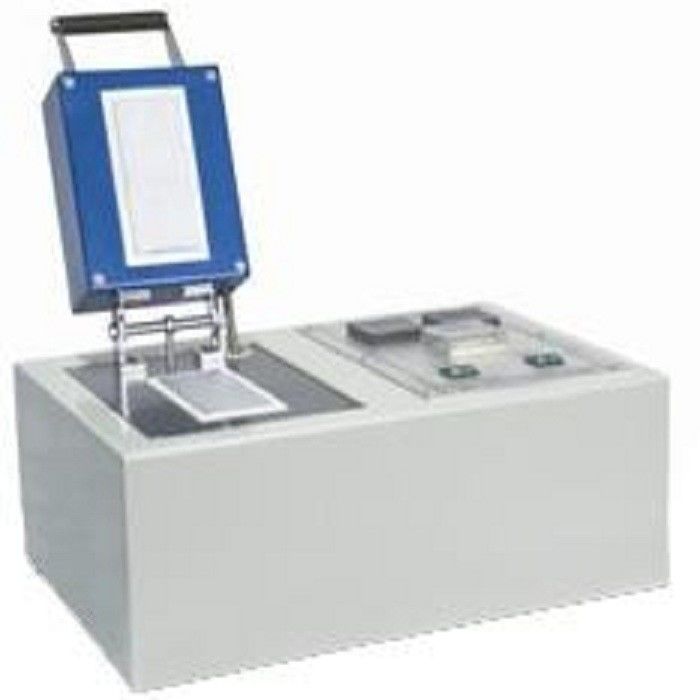

Textile Testing Machine Fastness to Ironing and Sublimation Test Machine for Textile and Fabric
Products description:
Ironing Sublimation Color Fastness Tester ,also as a kind of textile testing equipment, Used for textile ironing and sublimation fastness test
Test standard
GB/T 5718-1997 textile color fastness test Except dry heat resistance (thermal) color fastness
GB/T 6152-1997 textile color fastness test Hot pressing fastness
ISO 105 - P01:105 textile color fastness test The P01part: resistance to dry heat (thermal) color fastness
ISO 105 - X11:105 textile color fastness test The X11 part: hot pressing fastness
JIS L0879:2005 the fastness to dry heat
JIS L0850:1994 Colour fastness test to hot pressing method
Technical parameters
| Test method | Sublimation (two-sided heating) Ironing (single-sided heating) |
| Heating plate size | 50x110mm |
| Sample size | 40x100mm |
| Test Pressure | 4kPa±1kPa |
| Test time | 0-999S |
| Heating temperature range | RT~250ºC±2ºC |
| Working voltage | 220V 50HZ |
| Dimension | 420x520x260mm |
