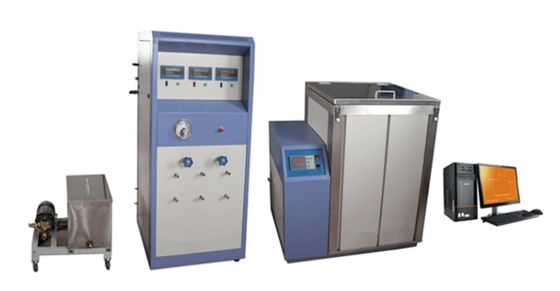

Pipe Burst Machine Pipe Hydrostatic Pressure Plastic Test Machine 3 Stations

Brand Name:	HD
Model Number:	HD- R840
MOQ:	1 set
Packaging Details:	wood box
Payment Terms:	D/A, D/P, L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ce,iso,

Stations:

3 Stations

Pressure Adding Range:

0~10MPa

Timing Precision:

Timing Range:

0—9999h

Sample Max. Diameter:

630mm

Power:

Electronic

Supply Ability:

30 set a month

Highlight:

universal tensile testing machine

compressive strength testing machine

Product Description

Pipe Burst Machine Pipe Hydrostatic Pressure Test Plastic Test Machine

Application:

The pipe test machine is designed and manufactured according to Thermoplastics pipes for the conveyance of fluids ---Resistance to internal pressure---Test method and the test method for short-time hydraulic failure and resistance to constant internal pressure of the plastics pipes for the transport of fluids. It is suitable to determine the pressure-resisting broken time or the maximum pressure value of instantaneous blast of thermoplastic pipes and compound pipes (such as P-R ,PP-B ,PP-A ,PE ,PE-X ,PVC ,PVC-U and PVC-C ) under long-term constant internal pressure and temperature .It is indispensable for manufacturers of plastic pipes and testing institutions

Equipment Features:

Stations	3 stations
Pressure adding range	0~10MPa
Max. working pressure of main pressure system	12MPa
Pressure controlling precision	+2% and -1% of upper and lower limit of test pressure value respectively
Resolution of pressure value	0.001Mpa
Sensor	Test pressure sampling periods is 0.1 millisecond
Timing range	0—9999h
Timing precision	1S
Sample max. diameter	630mm
Temperature of water tank	Room temperature to 95°C
End caps diameter	Φ 20,25,32,40,50,63,75,90,110,125,140,160mm
Water tank	Cooling system is for optional
