High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control

China High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control supplier
High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control supplier High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control supplier High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control supplier High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control supplier High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control supplier High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control supplier

Large Image :  High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B604-s

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Accuracy: ±0.5% Capacity: 2000 Kg (20KN)
Elongation Accuracy: 0.001mm Max. Stroke: 1000mm (including Fixture)
Motor: Panasonic Servo Motor Power: Electronic
Resolution: 1/250000 Sensor: Celtron Load Cell
Test Speed: 0.1~500mm/min (adjustable By PC) Type: Universal Tensile Testing Machine

High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control



                                High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control

APPLICATIONS

  1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
  2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
  3. Deformation under defined load: Test deformation under defined load of tested sample
  4. Load under defined deformation: Test load under defined deformation of tested sample
  5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Standard

  • ASTM D3574 Test E, ASTM D1623, ISO 1798: Tensile Test
  • ASTM D3574 Test F, ISO 8067: Tear Test
  • ASTM D3574 Test A: Density Test
  • ASTM D3574 Test B1, ISO 2439: IFD Test
  • ASTM D3574 Test H: Resilience (Ball Rebound) Test
  • ASTM D3574 Test I3: Dynamic Fatigue Test by Constant Force

Safety features:

  1. E-Stop
  2. Over-load protection
  3. Upper and lower limit switches
  4. Load sensor with automatic retreat
  5. Computer Control with samrt test system

Tensile Test Machine Technical Parameter



Item Description
Max. Force 2000 kg (20KN)
Load cell Germany brand load cell for high accuracy
Control system PC with windows 7 system
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 1200mm including fixture
Load cell Resolution 1/250,000
Load Precision ≤0.5%
Test speed 0.1~500mm/min (adjustable by PC)
Test width ≤400mm
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…



Features of Computer control 500kg steel wire tensile testing machine price

  1. Adopting windows platform, and all the parameter settings can be processed in the dialog
  2. box, and it operates easily;
  3. Using a single-screen operation; do not need to switch the screen;
  4. With three languages in Simplified Chinese, Traditional Chinese and English, the software
  5. interface can be switched easily:
  6. The pattern of Test reports can be self-designated;
  7.  test data can be displayed directly in the main screen;
  8. Choosing translational, comparative mode at the same time to make a number of curve
  9.  data comparison;
  10. With a variety of measurement units, Measure In Imperial & Metric are switchable;
  11. With self-return & auto-correction function;
  12. With automatic magnification function, in order to achieve the most appropriate size of the
  13.  graphics;
  14. With the user-defined Test methods; with experimental data analysis function;
  15. High quality, accurate and reliable models with reasonable price.

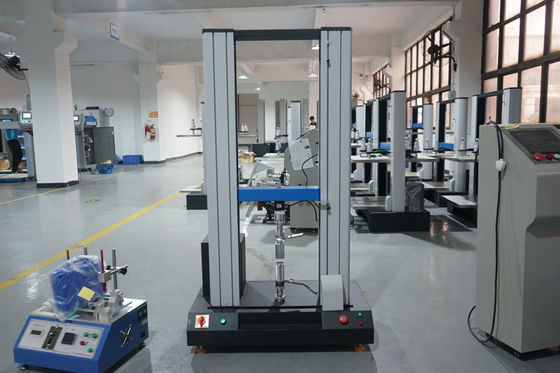

The images of Computer control 500kg steel wire tensile testing machine price

                                                      High Accuracy 500kg Steel Wire Tensile Test Machine Computer Control

Company Information

The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.



FAQ



Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's
not from our factory. What you need to do is to send us the controller.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence
to us.

4.Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film
before put them into the wooden case, which not only has good shock absorption, impact resistance,
heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency
etc.
