Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765

China Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765 supplier
Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765 supplier Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765 supplier Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765 supplier Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765 supplier Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765 supplier Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765 supplier Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765 supplier

Large Image :  Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765

Product Details:

Place of Origin: China guangdong
Brand Name: Haida
Model Number: HD-1052

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USA2500-6000/set
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 15 Days after oder.
Payment Terms: L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability: 300sets/month
Contact Now
Detailed Product Description
Designed Standard: EN14764, EN14765 Machine Dimension: 280x120x260cm
Power: Servo Motor + Reducer + Clutch Testing Speed(km/hr): 7-27km/hr(special Speed-upon Request)
Luggage Carriers(Kg): 10.18.25.according To Luggage Carriers, Area 204X240 (Assembly Type) Head Tube(Kg): 14
Force To Brake Handlebars: ConformEN14764 Standard(Auto Weight 40~180N) Brake Force(N): 2000
Standard Accessories: Tool Kitx1, Operational Manual In English X1, Testing Dead Weight, Warranty Certificationx1 Dimension(W X D X H): 3070x1200x2100 (Ref Only)

Electronic Bicycle Braking Performance Universal Tester EN14764 EN14765





Product Description

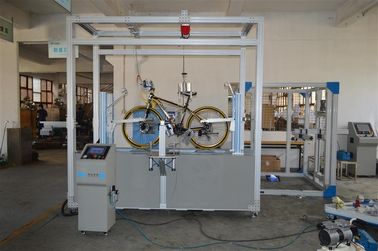

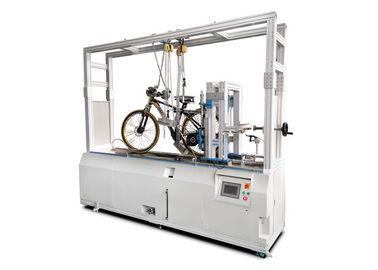

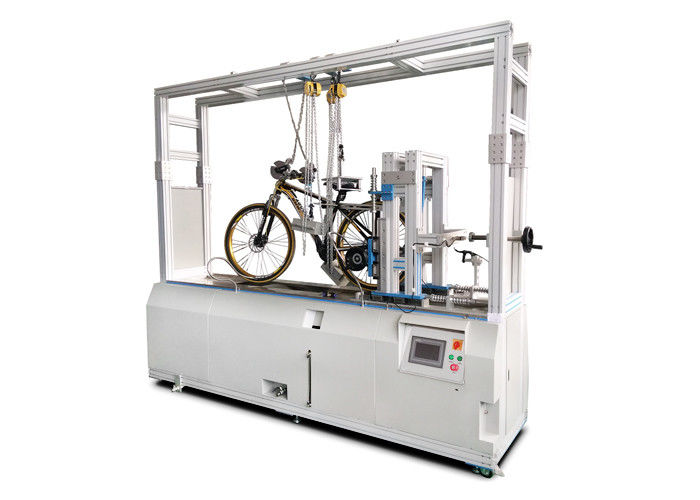

Electronic Bicycle Braking Performance Test Equipment is suitable to test bike’s run test& brakes performance test. T



Electronic Bicycle Braking Performance Test Equipment is formed by two rollers with varied diameter and follows specification to install jump plates at bike’s seat post. pedals, bars, luggage carries, with load set to this tester.



Adjust the distance between front and rear wheel base on the standard for complete cycles, constantly rotate the wheel is by 7-27km/hr and the bike is supposed to maintain its normal function, no part damage or crack is found. For brake test, follow the specification specified roller’s friction coefficient, wind speed and water-spray amount of loaded brake & handlebars to test the performance





Designed standard:

EN14764, EN14765 (City and trekking bicycle Part 4, Bicycle for young children Part 4)





Main technical:

Model

TT-1052DB

TT-1052B

TT-1052D



Brake & run test

Brake test

Run test

Adjust range between front & rear wheels

mm

860~1200/(600~1200 optional) / Customer specified







Counter setting

diameter

760/(560 optional ) / Customer Specified

Jump block amount& combination phase

EN14764 standard



EN14764 standard

power

Servo Motor + reducer + Clutch

AC Reduce Motor+ speed Regulation+ clutch

Testing speed(km/hr)

7-26km/hr(special speed-upon request)

Crank Drive Mechanism(optional)

Testing speed(km/hr)

7-26km/hr(special speed-upon request)







Counter Weight

Seat Post(Kg)

36









Overall Weight 120

Pedals(Kg)

18

Handlebar(Kg)

6.75

Luggage Carriers(Kg)

10.18.25.according to luggage carriers, area 204X240(Assembly Type)

Head Tube(Kg)

14

Force to Brake Handlebars



ConformEN14764 Standard(Auto weight 40~180N)











Brake Force

Brake Force(N)

700

±1

N/A

Resolution

N/A

Accuracy

N/A

Power

3;220V;50HZ(3;380V optional)

Consumption

KW

10

5

8



Dimension(WxDxH)



3030x1200x2900mm (Ref Only)

Standard Accessories

Tool Kitx1, Operational Manual in English x1, Testing dead weigh, Warranty Certificationx1





Brake test velocities and braking distance:

Ref: (EN14764)

Condition

Velocity(Km/h)

Brakes in use

Braking distance



Dry



25

both

7

Real only

15





Bicycle Irregular Surface Testing Machine



Bicycle Irregular Surface Testing Machine



Bicycle Irregular Surface Testing Machine







Quality guarantee



1)  Quality assurance items

The guarantee period is one year



2)  The main quality warranty maintenance certificate

If there is any dispute please refer to our guarantee letter, so:

a. Please keep this guarantee letter, if you lost it, please connect with us in a month.

b. If this guarantee letter has been altered or it has no our stamp, it is useless.



3)  The following conditions need to pay reasonably even in the assurance period:

 Natural reasons

 Operating mistakes

 Voltage is not fit for our operation instruction

 Repack it without our guides

 Damaged for borrowing to others

 Damaged for authorized machine modification

 Damaged for authorized calibration

 Authorized transshipment mistake

 Serve for long distance area



4)  Attentions

 Any service in Taiwan or outside Taiwan, transport and travel fees shall be paid by the customer.

 Any service outside Guangdong, transport and travel fees shall be paid by the customer.
