Electronic Furniture Testing Machines For Chair Back Impact Strength Testing Machine

China Electronic Furniture Testing Machines For Chair  Back Impact Strength Testing Machine supplier
Electronic Furniture Testing Machines For Chair  Back Impact Strength Testing Machine supplier Electronic Furniture Testing Machines For Chair  Back Impact Strength Testing Machine supplier

Large Image :  Electronic Furniture Testing Machines For Chair Back Impact Strength Testing Machine

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F734

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Control Mode: PLC With LCD Touch Screen The Maximum Tension Value: 150kg
The Maximum Thrust Value(horizontal): 50kg The Maximum Pressure Value(Vertical): 150kg
Capacity: 0-500kg Setting Time: 0-99S
Machine Size: (L×W×H)1500×1400×1800mm

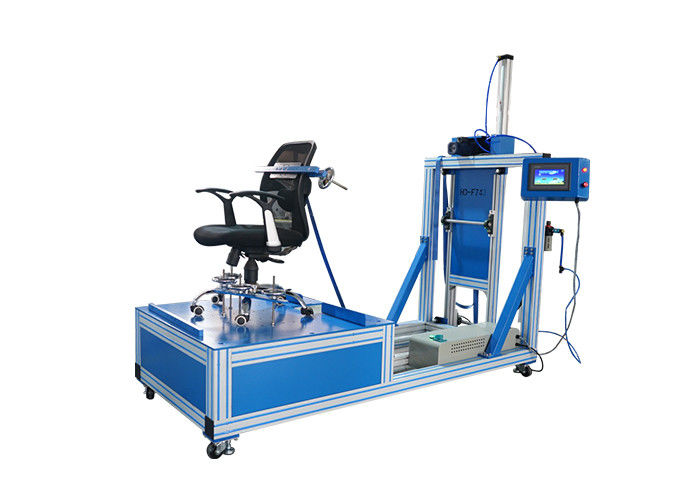

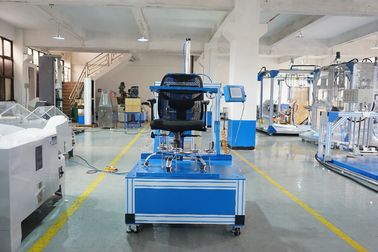

Electronic Furniture Testing Machines for Chair Back Impact Strength Testing Machine



Main function:



Chair arm and back strength testing machine is designed to test office chair arm( vertical and horizonal test ) and back strength. It with PLC controller, touch screen interface to input test parameters, test force and times can be set, count the time when reach setting force and return back automatically when time over.





Design standard: BIFMA  X5.1-2011  5,6,10,13,14,15,16,19,20

Backrest Strength Test - Static - Type l  Applicability

This backrest strength test shall be performed on Type I chairs.  For chairs with tilt locks, locking the chair

changes

 the chair type (See Section 4) and must also be tested according to Section 6 in the upright locked position.

An additional chair may be used for the Section 6 testing.   Note: This test does not apply to chairs with

backrest height less than 200 mm (7.9 in.).



Arm Strength Test - Vertical – Static Applicability

This test applies to all chairs with arms. The purpose of the test is to evaluate the ability of a chair and arm to withstand stresses caused by applying vertical forces on the arm(s).



Standard

Content

Accessories

Clause 5

Backrest Strength Test Static – Type I


Chair Measuring Device x1



The chair measure  x 1

6

Backrest Strength Test Static - Type II & III



11.4

Front corner Load-Ease Test – Cyclic

Diameter 203 mm loading device x 1

10

Tilt mechanism Test

102kg  one weight

12.3, & 12.3.2

Rear Stability Test for type I.II, & III chair

1) Stability Disks x 13

2) 1.5 x 356 x 711 mm  polypropylene support

fixture x 1

12.4

Front stability

12d Front stability loading fixtureX 1

12e front stability loading disk x1

12g front stability loading fixtureX 1

135 lb  farmar 1

Pull-push gauge with attachment x1

13

Arm strength test-vertical-static

Loading adaptor (100 x 127 mm) x 1

C- fixture x 1

14

Arm strength test

Horizontal-static



15 & 16

Backrest durability test

-cyclic for type I, II & III

Loading device (back pull) x 1

Form fitting device 305mm+/- 13mm x 89mm +/-13mm & thickness 12mm  x 4

22

Out stop Test

74 kg counterweight iron x 125 kg counterweight iron 1 x

23

Tablet Arm Chair Static Load Test



24

Tablet arm chair load ease test – Cyclic





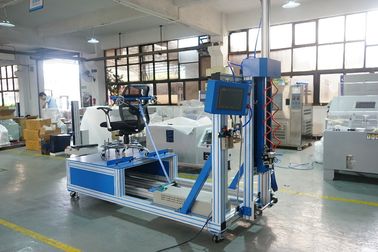

                                             Electronic Furniture Testing Machines For Chair  Back Impact Strength Testing Machine



Main technical parameters:

1, Tension mechanism, servo motor and the strap pulley architecture, the intensity of the rotation transformed into tension and supplemented force values ​​turn sensor read correctly tension, the action of the closed-loop control of servo motor to achieve a number of pull. Static and cyclic testing. Rally and speed can be set free. Mainly used for 5, 6,13,14,15, and 16 test.

2,In addition to this machine is also configured with two groups of electric actuator, respectively, for a group of the vertical apparatus and the horizontal apparatus 1 group, each group independently adjust the speed and thrust. Stroke is 500mm

3, The vertical means of the servo motor can be used for the actuator, the vertical position adjustment, mainly used for the first 11.4,22,23 and 24 of the test; the maximum pressure is 150 kg.

4, Level device servo motor caused the brake position adjustment of the pieces up and down and left and right mobile and flexible to meet the demand for different test location, is mainly used for 10,12.3 and 12.4 testing. 50 kg maximum thrust, adjustable up and down the range from 500 mm to 1200 mm.

5, the bottom plate of the test machine drilling multiple rows of screw holes for easy installation of different attachments and fixed test conditions

6, each electric actuator front-end with a quick connector for easy replacement of the load block and fixture

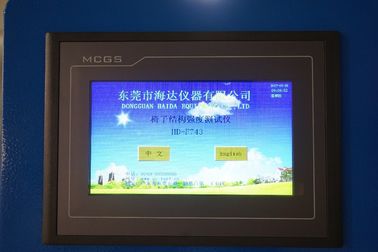

7, control mode PLC with LCD touch screen
8, the maximum tension value 150kg
9, the maximum thrust value(horizontal) 50kg
10,the maximum pressure value(Vertical) 150kg
11,Can be equipped with computers, recording force and displacement changes.
12, Capacity 0-500kg
13,Setting time 0-99S
14, Machine size (L×W×H)1500×1400×1800mm
15,Test accessories One test platform for arm test; arm vertical test grips; one back strength test grips.





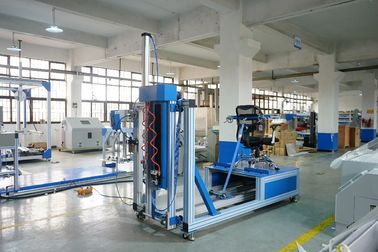

Electronic Furniture Testing Machines For Chair  Back Impact Strength Testing Machine
