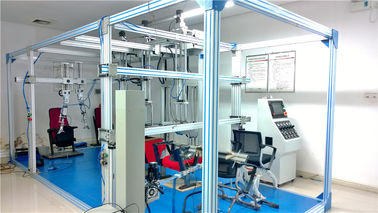

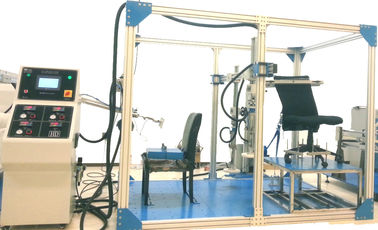

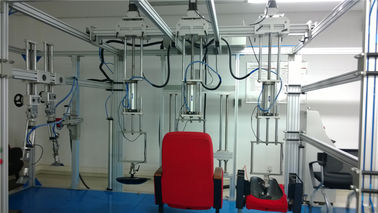

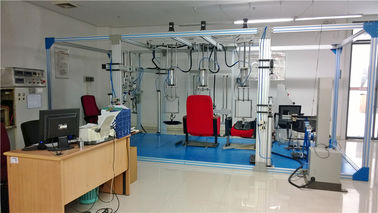

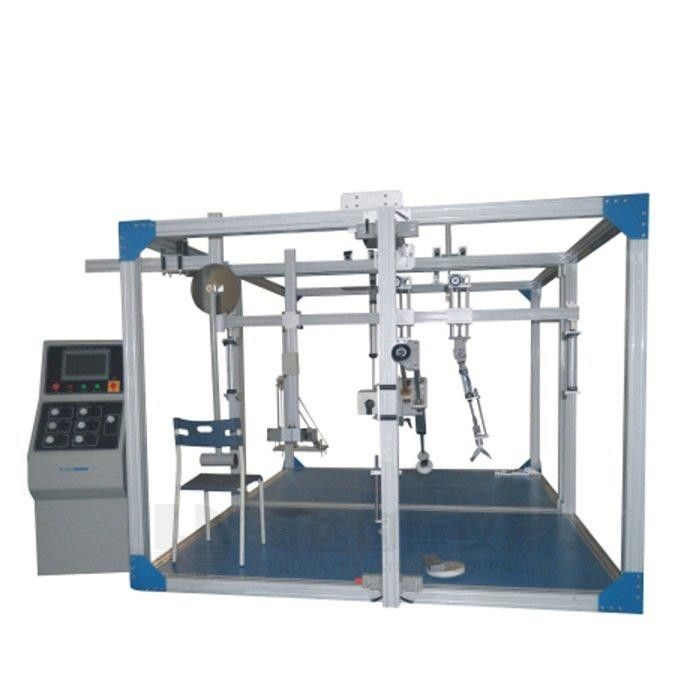

Touch Screen Control Universal Furniture Testing Machines For Chair Static / Cyclic Testing

China Touch Screen Control Universal Furniture Testing Machines For  Chair Static / Cyclic Testing supplier
Touch Screen Control Universal Furniture Testing Machines For  Chair Static / Cyclic Testing supplier Touch Screen Control Universal Furniture Testing Machines For  Chair Static / Cyclic Testing supplier Touch Screen Control Universal Furniture Testing Machines For  Chair Static / Cyclic Testing supplier Touch Screen Control Universal Furniture Testing Machines For  Chair Static / Cyclic Testing supplier Touch Screen Control Universal Furniture Testing Machines For  Chair Static / Cyclic Testing supplier

Large Image :  Touch Screen Control Universal Furniture Testing Machines For Chair Static / Cyclic Testing

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F743

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Control Mode: PLC With LCD Touch Screen The Maximum Tension Value: 150kg
The Maximum Thrust Value(horizontal): 50kg The Maximum Pressure Value(Vertical): 150kg
Brand: Haida Model: HD-F743

Touch Screen Control Universal Furniture Testing Machines For Chair Static / Cyclic Testing





Introduction:



Touch Screen Control Universal Furniture Testing Machines For Chair Static / Cyclic Testing to simulate normal functional use to determine the strength of the sofa structure by applying to various parts with loads or forces. Using certain shape and load modules, with specific form, frequency, respectively, repeating load seat, back and armrest. Each point have force sensor to show the pressure.



 Main technical parameters:



Senor accuracy: 0.3%

Control panel: programmable LCD touch screen controller

Maximum specimen size: (L×W×H) 2200×1200×1200mm

Seat load: 0~200kg (adjustable)

Back load: 0~100kg (adjustable)

Test cyclic: 0~999,999 (adjustable)

Machine weight:400kg

Power:1 phase ,AC220V,50Hz

Air pressure:7kg/cm2

Design criteria: EN4875



Main Parameters:



Touch Screen Universal Chair Static & Cyclic testing Machines consists form several parts

  1. Tension mechanism, servo motor and the strap pulley architecture, the intensity of the rotation transformed into tension and supplemented force values ​​turn sensor read correctly tension, the action of the closed-loop control of servo motor to achieve a number of pull. Static and cyclic testing. Rally and speed can be set free. Mainly used for 5, 6,13,14,15, and 16 test.
  2. In addition to this machine is also configured with two groups of electric actuator, respectively, for a group of the vertical apparatus and the horizontal apparatus 1 group, each group independently adjust the speed and thrust. Stroke is 500mm
  3. The vertical means of the servo motor can be used for the actuator, the vertical position adjustment, mainly used for the first 11.4,22,23 and 24 of the test; the maximum pressure is 150 kg.
  4. Level device servo motor caused the brake position adjustment of the pieces up and down and left and right mobile and flexible to meet the demand for different test location, is mainly used for 10,12.3 and 12.4 testing. 50 kg maximum thrust, adjustable up and down the range from 500 mm to 1200 mm.
  5. the bottom plate of the test machine drilling multiple rows of screw holes for easy installation of different





Attachments and fixed test conditions



1. Each electric actuator front-end with a quick connector for easy replacement of the load block and fixture

2. Can be equipped with computers, recording force and displacement changes.



control mode PLC with LCD touch screen
the maximum tension value 150kg
the maximum thrust value(horizontal) 50kg
the maximum pressure value(Vertical) 150kg



Touch Screen Universal Chair Static & Cyclic testing Machines



Touch Screen Control Universal Furniture Testing Machines For  Chair Static / Cyclic Testing





Why choose us?


1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
