Product Details:
Payment & Shipping Terms:
|
| Brine Tank Capacity: | 40L | Test Chamber Temperature: | Salt Spray Method ( NSS ACSS ) 35±1°C Corrosion-resistant Testing Method ( CASS ) 50±1°C |
|---|---|---|---|
| Power: | AC220V , 30A | Accessories: | Testing Salt/ Measuring Tank/ Equipment Each 1 Set |
| Inner Box Size ( L×W×H ): | 200×100×60 Cm | Outside Box Size ( L×W×H ): | 270×150×150 Cm |
| High Light: | environmental testing equipment,humidity temperature test chamber |
||

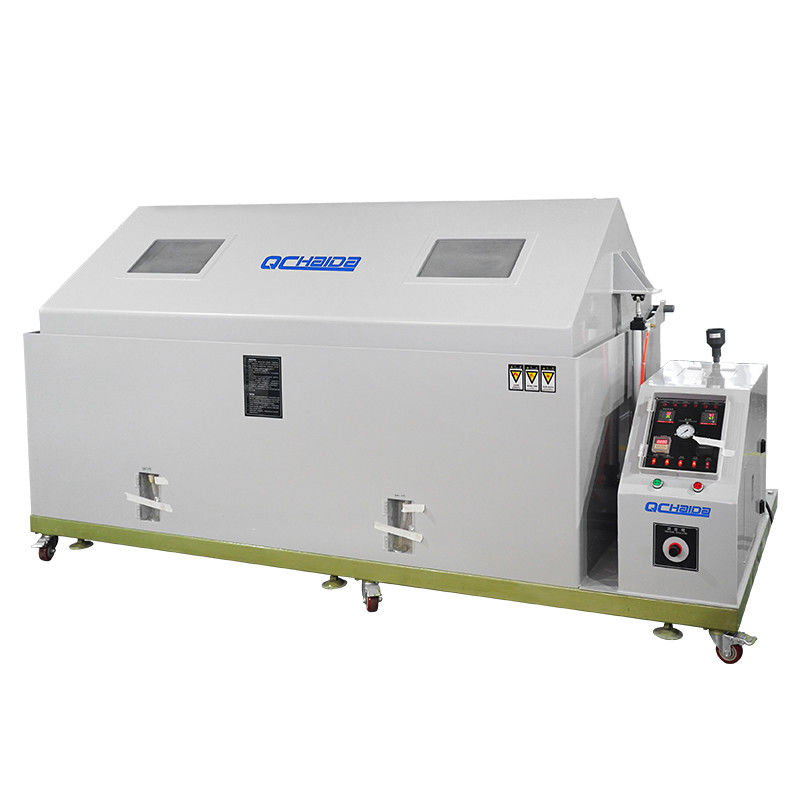

Automatic Salt Spray Environmental Test Chambers With Over Pressure Protection
Specifications:
Salt Spray Testing Machine
1 . Durable hard PVC construction ;
2 . reservoir with mixing system on stand
Salt Spray Testing machine adapted to the surface treatment of various materials , including paint , electroplating , organic and inorganic coating , anode processing , antirust oil and so on , after these anti-corrosive treatment to test the corrosion resistance of their products .
Specifications:
| Model | HD-E808-200 |
| Internal Size (W*D*H) | 2000*1000*600mm |
| External Size (W*D*H) | 2700*1500*1500mm |
| Equipment Material | P.V.C rigid plastic plate, thickness 8mm |
| Sample tray |
Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined |
| Temperature Range | Room temperature ~ 55℃ |
| Temperature Fluctuations | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spraying method | Continuous and Periodic spray type |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃ |
| Brine Temperature | 35℃±1℃ |
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
| PH value | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Lab Volume | 1200L |
| Brine Tank Capacity | 40L |
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
| Accessories | Testing Salt / Measuring tank / Spray Nozzle x 1 set |
| Air source | Air pump (provided by buyer) |
| Test criteria | ASTM B117-08, ISO 9227... |
