Automatic LCD Touch Screen Foam Mattress Fatigue Endurance Testing Instrument

China Automatic LCD Touch Screen Foam Mattress Fatigue Endurance Testing Instrument supplier

Large Image :  Automatic LCD Touch Screen Foam Mattress Fatigue Endurance Testing Instrument

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F766

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Speed: 20~300mm/Min Stroke: 500mm
Capacity: 200kg Load Plate Position Adjustment: 300mm
Max Mattress Size: 2200× 2200× 40mm Display Accuracy: 0.001kgf
Deformation Precision: 0.001mm Impact Height: 0-300mm Adjustable
Counter Range: 0-99999 Times Machine Size: 3000* 2800*2500mm

         Automatic LCD Touch Screen Foam Mattress Fatigue Endurance Testing Instrument

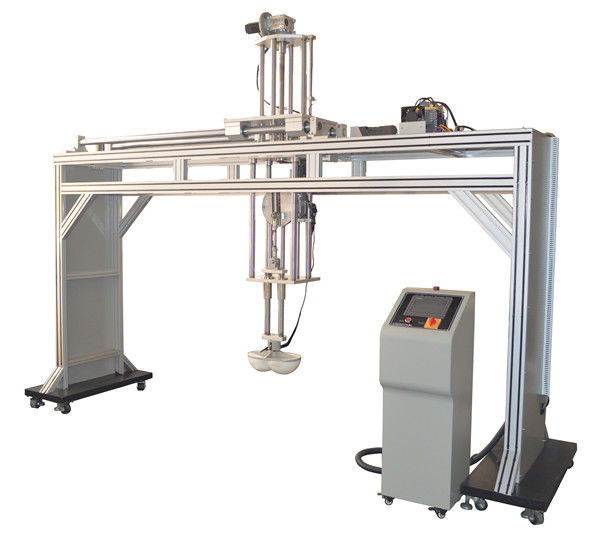

Cornell Mattress Foam Rebound Fatigue Test Machine apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.

Main parameters and features:
Use specific block impact on the mattress over and over again,
to assess their durability, and the fastness of mattress spring.

Display Accuracy


Deformation precision


Impact height

0-300mm adjustable

Counter range

0-99999 times

Machine size: ( L x W x H)

3000x 2800x 2500mm


Approx. 600Kg

Control method


Display interface

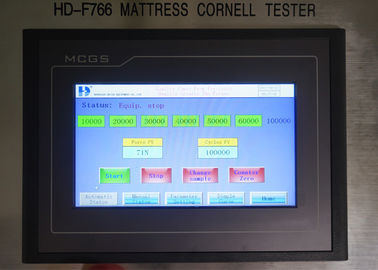

LCD Touch screen, can display test graph, with USB port to output test results.

Test status

200, 6000, 12500, 25000, 50000, 75000, 100000
adjust the height loss automatically.

Design criteria

ASTM F 1566


Single phase, AC 220V, 50-60Hz.

Other parameters

1. Adjust the pushrod stroke on mattress , maximum force = 1025N, minimum force = 22N
2. Pusher travel speed adjustable, about 100 weeks times per minute
3. Imposed the pressure on mattress by a transducer, pressure range to 300KG


Different Models of The Machine

Automatic LCD Touch Screen Foam Mattress Fatigue Endurance Testing Instrument
