| Power: | Electronic | Usage: | Paper Testing Instrument |
|---|---|---|---|
| Display: | Spectral Values / Charts, Color Values, Color Values, "pass / Fail" Decision, The Relative Gloss | Port: | Meet The RS-232C Standard |
| High Light: | paper tensile strength tester,paper testing instruments |
||

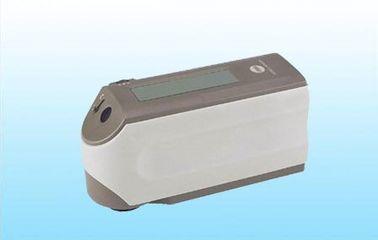

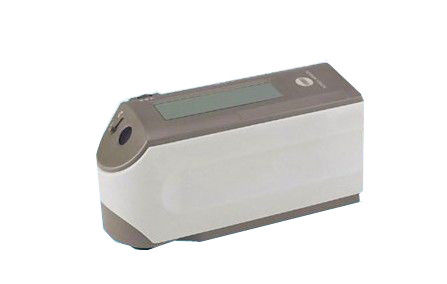

High-precision Paper Testing Equipments integrating sphere spectro photometer
Product Features:
portable integrating sphere spectrophotometer, and its versatile performance can be used for various practical applications.
★ portable, compact, lightweight and stylish body.
★ Chinese display operation, high-precision sensors.
★ with CM-2600d (Ø8) and CM-2500d compatible data.
★ store up to 1700 sets of data.
Usage
Suitable for plastic / rubber, paint, textile dyeing, printing, leather, automobile and so on. Color quality management software can connect, CCM (computer color matching system).
Technical Specifications:
|
Light / Observing System |
d / 8 (light scattering, 8 degree viewing angle) with SCI (specular component included) / SCE (not including specular reflection) synchronous measurement function. (Meet CIE No.15, ISO 7724/1, ASTME1164, DIN5033 Tei17, JIS Z8722 Condition c standards.) |
|
Integrating sphere size |
Ø52mm |
|
Sensor |
silicon photodiode array (dual 40 elements) |
|
Splitting means |
Diffraction grating |
|
Wavelength Range |
360nm-740nm |
|
Wavelength spacing |
10nm |
|
Spectral half band width |
10nm |
|
Reflectance range |
0-175%, resolution: 0.01% |
|
Light source |
2 pulsed xenon lamp |
|
Measuring time |
Approximately 1.5 seconds |
|
Minimum measurement interval |
3 seconds (at 23 ℃) |
|
Battery performance |
At 10-second intervals of about 1000 times (with alkaline batteries) (at 23 ℃) |
|
Measurement / illumination area |
Ø8mm/Ø11mm |
|
Repeatability |
Spectral reflectance: Standard deviation less than 0.2% (360 to 380nm: standard deviation of 0.4% or less) Chromaticity value: Standard deviation within ΔE * ab 0.08 (after correction on the board at 10-second intervals white calibration plate is measured 30 times) |
|
Phase difference |
ΔE * ab of 0.4 or less (SCI) (based on 12 BCRA Series ll whiteboard, on average, when compared at 23 ℃ was measured by the host body values) |
|
Language patterns |
English / Chinese |
|
Measurement mode |
Single / average (Auto mode: 1-8 times / manual mode) |
|
Port |
Meet the RS-232C standard |
|
Observer |
2/10 degrees |
|
Observation light source |
A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (using two light sources can be calculated simultaneously) |
|
display |
Spectral values / charts, color values, color values, "pass / fail" decision, the relative gloss |
|
Color space / colorimetric data |
L*a*b*,L*C*h,Yxy,XYZ,MI,ΔE*ab,CMC(1:1),CMC(2:1),CIE94,CIE DE2000,WI(ASTM E313),YI(ASTM D1925)
|
|
Data sets can be stored |
1,700 (each data set by a pair of SCI / SCE data members) |
|
Tolerance judgment |
Chroma Tolerance |
|
Power supply |
AA batteries (X 4), AC adapter |
|
Size |
69 (W) X96 (high) X193 (L) mm |
|
Weight |
Approximately 670g (including whiteboard / batteries not included) |
|
Operating temperature / humidity range |
5 ℃ to 40 ℃, relative humidity 80% or less (at 35 ℃), without condensation |
|
Storage temperature / humidity range |
0 ℃ to 45 ℃, relative humidity 80% or less (at 35 ℃), without condensation |
|
Standard accessories |
White Calibration Plate: CM-A145 |
|
Ø8mm Target box: CM-A146 |
|
|
RS-232C cable (D-sub9-pin, for IBM, PC / AT): IF-A16 |
|
|
AC Adapter AC-A17 |
|
|
AA (R6) alkaline batteries X 4 |
|
|
Optional accessories |
Zero Calibration Box: CM-A32 |
|
Hard Carton: CM-A148 |
|
|
Dust Cover Kit: CM-A149 |
|
|
Cover: CM-A152 |
|
|
Color Data Software "SpectraMagic NX": CM-S100W |
|
|
Printer cable (D-sub9 pin for serial link): CR-A75 |
