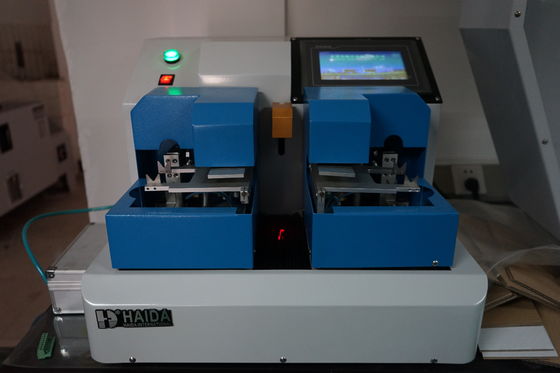

Microcomputer Control Desktop Paper Testing Equipments Electric Power

China Microcomputer Control Desktop Paper Testing Equipments Electric Power supplier
Microcomputer Control Desktop Paper Testing Equipments Electric Power supplier Microcomputer Control Desktop Paper Testing Equipments Electric Power supplier Microcomputer Control Desktop Paper Testing Equipments Electric Power supplier

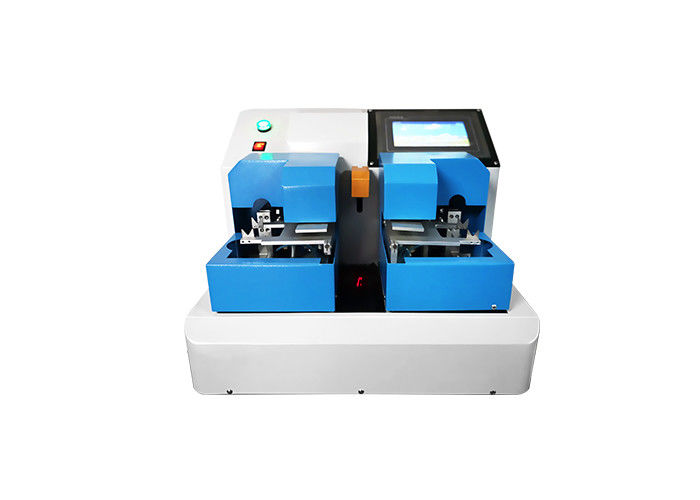

Large Image :  Microcomputer Control Desktop Paper Testing Equipments Electric Power

Product Details:

Place of Origin: CHINA GUANGDONG
Brand Name: HAIDA
Model Number: HD-A546

Payment & Shipping Terms:

Minimum Order Quantity: 1/SET
Price: USD5000-10000/set
Packaging Details: Each set paper board 4 point bending stiffness testing machine is protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 15 days after order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300set/month
Contact Now
Detailed Product Description
Compressed Air: 6 Kg/cm2 Producer: Guangdong China(mainland)
Function: Bending Stiffness Test Usage: Paper Board 4 Point Bending Stiffness Testing Machine
Color: Gray Power: Electric

Microcomputer Control Desktop Paper Testing Equipments Electric Power



Product Description

On the four-point bending test, bending length is one of the more important factors affecting test results, for this reason on the issue took an automation solution. Instrument operators only need to use a key, can cause the gap between two clamping surface becomes large or small, when has reached a suitable location, operation within the data into the computer program automatically precision can reach 0.1 mm.



1. Product advantages:

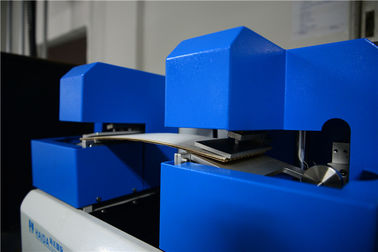

1. Since we are using pneumatic clamping plate to fix the test board, small warp, twist or curl of the board is no longer a problem in the test. This is also the reason to choose 4-point bending method to test the paper stiffness instead of other methods such as 2 point and 3 point bending.

2. Length of the test board is one of the critical factor to affect the test result, HD-A544 give you an automatic solution. Operator use one button to widen or shorten  the opening gap between the clamping plate, when your designated width approach, data can automatically write into the computer for calculation, accuracy up to 0.1mm

3. Use non contact device to measure the deflection of the paper board, this can eliminate any un-expected loading onto the paper board such as spring load or    weight of the measuring probe. The new feature of HD-A544 increases the credibility of the test result.

4. No matter the thickness of the samples, HD-A544 equipped with an intelligent detector to get the zero reference point. Test becomes more convenience.

5. The test report prints out use conventional office printer. Thermal paper no longer use. Text and graphic printed on the thermal paper can not last long, it will fade out when time pass. Therefore use common typing paper let the file keep much longer.

6. Shear force (one of a uncertainty) in this test method has been overcome by applying special mechanism on the clamping plate.



1.3 Product features:

1)  This tester is to measure the resistance of the test piece offer to bending, in the region of elastic deformation.

2)  The tester is suitable for corrugated paper board (Flute A,B,C,D & E)

3)  A precise sensor measure the linear deflection caused by bending display on the screen and send to the micro-processor for calculation through the communication port.

4)  Automatic zero set point of the transducer compensate various thickness of the paper board.

5)  Length of paper board is adjustable from 50 to 300 mm. Make use of a stepping motor ,left/right turn ball screw, the change of paper board length is much easier , the required length can be set and automatically done by the machine.



Main parameters:

Test precision

Within±5%

Maximum sample width

100 mm

Set of precised control weight provided

20g * 4 ea

50g * 4 ea

100g * 4 ea

300g * 2 ea

Power supply

Single phase, AC 110/220V, 250W

Compressed air

6 kg/cm2

Motor

Panasonic servo motor 400W+Driver

Touch screen

PLC control, TPC7062kx

Stepper motor

42BYGH47-1684A

SMC cylinder

MXH10-50

Result Output

USB Flash Drive – Print Out the Image File

Tabular or graphical presentation of result

Flow-limiting Valve

M5-4 (FESTO Germany)

Measurement Tools

Laser Displacement Detector

P.S non contact device to measure the deflection of the paper board, this can eliminate any

un-expected loading onto the paper board

After-service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
