Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Design Standard: | EN 1888:2012 |
|---|---|---|---|
| Test Count: | 0-999,999 | ||
| High Light: | fatigue testing equipment,strollers testing equipment |
||

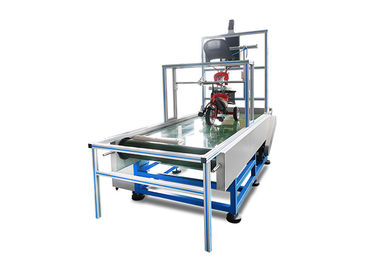

AC Motor 50Hz Strollers Testing Machine , EN 1888 Standard Baby Car Dynamic Durability Tester
Description:
Baby car dynamic durability tester is for testing the stroller wheel performance on the harmful roadway,after doing the repeat impact test,examine the wheel change the Shape or damage. (Base on the EN-1888 requirement/Customer specified requirement) User can preset speed and cycle quantity in the PLC interface.
Design standard: EN 1888:2012
Technical parameters:
| Model: | TT-J210 | TT-J210-A | TT-J210-B | |
| Conveyor speed: | 5km/h ±0.5km/h | |||
| Effective width: | Max.1000mm | Max. 800mm | Max.1000mm | |
| Test count: | 0-999,999 | |||
| Bearing load Max.: | Max. 100Lb | Max. 100Lb | Max. 100Lb | |
| Aluminums block high: | Base on the EN-1888 standard/ Customer specified) | |||
| Emergency stop buttons: | 2 | 4 | 4 | |
1.6 Standard accessory list:
|
Model |
TT-J210 |
TT-J210-A |
TT-J210-B |
|
Obstacle |
1 set |
1 set |
2set |
|
Motor |
AC motor 220V/50Hz 1KW |
AC motor 220V/50Hz 1.5KW |
|
|
Testing weights |
2 set (9kg & 15kg) |
2 set (9kg & 15kg) |
2 set (9kg & 15kg) |
|
Conveyor |
1 pc |
1 pc |
1 pc |
Motor specification:
Brand: OPG
Model: CH-40
Detail specification as attachment ( motor specification)
Quality guarantee
1) Quality assurance items
The guarantee period is one year
2) The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
① please keep this guarantee letter, if you lost it, please connect with us in a month.
② If this guarantee letter has been altered or it has no our stamp, it is useless.
3) The following conditions need to pay reasonably even in the assurance period:
① Natural reasons
② Operating mistakes
③ Voltage is not fit for our operation instruction
④ Repack it without our guides
⑤ Damaged for borrowing to others
⑥ Damaged for authorized machine modification
⑦ Damaged for authorized calibration
⑧ Authorized transshipment mistake
⑨ Serve for long distance area
4) Attentions
① Any service in Taiwan or outside Taiwan, transport and travel fees shall be paid by the customer.
② Any service outside Guangdong, transport and travel fees shall be paid by the customer.
