Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards

China Dongguan Haida Equipment Co.,LTD certification
China Dongguan Haida Equipment Co.,LTD certification
The instruments you recommend are very suitable for the testing needs of our laboratory products, after-sale is very patient to answer all our questions, and guide us how to operate, very nice.

—— Div Harish

You are very professional partners and we are willing to establish long-term cooperative relations with you.

—— Wojtek Krawczyk

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Manuel Munoz

I'm Online Chat Now

Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards

Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards
Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards

Large Image :  Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-J203
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electric Port: ShenZhen
Power Supply: 1∮, AC220V/ 50Hz Weight: 850kg
High Light:

dynamic test machine

,

strollers testing equipment



Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards



Brief  Introduction:

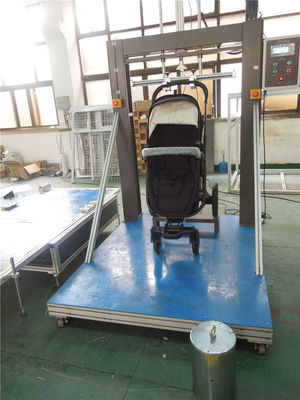

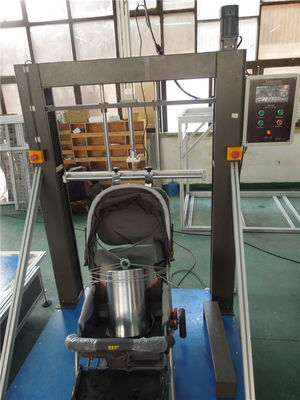

Hand strollers lift down durable testing equipment is to test the upholding and pushing durability property of the baby stroller according to ASTM Standards. The test method is: place the baby model in the stroller, leave the trailing wheel 150mm high from the ground when lifting the stroller; leave the front wheel 150mm high from the ground when pushing it, repeat this method continuously for 3000 times at the speed of 15±1 per minute, and check whether the stroller is damaged. The machine will stop automatically when it up to its set-up times, so there is no need to watch it.



Main Parameters:



Power of upholding and pushing

driven by pneumatic cylinder, can lift and push 50kg.

The fixed method of the handle

mobile or replaceable

Adjustable distance from the handle joint

300mm

Function of upholding and pushing

leave the trailing wheel 150mm high from the ground when upholding, leave the front wheel 150mm high from the ground when pushing.


Automatic timer

   LED, 1~9999 times

Testing space

  can be customized

Dimension of the machine

(L×W×H) 1650x1100x1900mm

Weight

850kg

Power

1∮, AC220V/ 50Hz


The usage:



1.Position the vehicle on a horizontal surface without the parking device applied.

2.Place the test mass as for the stability test. If the vehicle is designed for more than one child use any
number of appropriate test masses, up to one in each place intended to be occupied by a child.

3.Alternately raise and lower the handle(s) by applying a vertical force to the handle so that the rear wheels and
front wheels in turn are raised (120 ± 10) mm, measured at the start of the test from the floor and then lowered

in a controlled manner without pause (see Figure A).

4.Carry out the test for a total of 10 000 cycles at a frequency of (15 ± 2) cycles/min.



Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards 0



Durable Strollers Testing Machine For Hand Strollers Lift Down With ASTM Standards 1
