Automatic Corrugated Cardboard Bursting Resistance Strength Testing Equipment/Machine

China Automatic Corrugated Cardboard Bursting Resistance Strength Testing Equipment/Machine supplier
Automatic Corrugated Cardboard Bursting Resistance Strength Testing Equipment/Machine supplier Automatic Corrugated Cardboard Bursting Resistance Strength Testing Equipment/Machine supplier Automatic Corrugated Cardboard Bursting Resistance Strength Testing Equipment/Machine supplier Automatic Corrugated Cardboard Bursting Resistance Strength Testing Equipment/Machine supplier

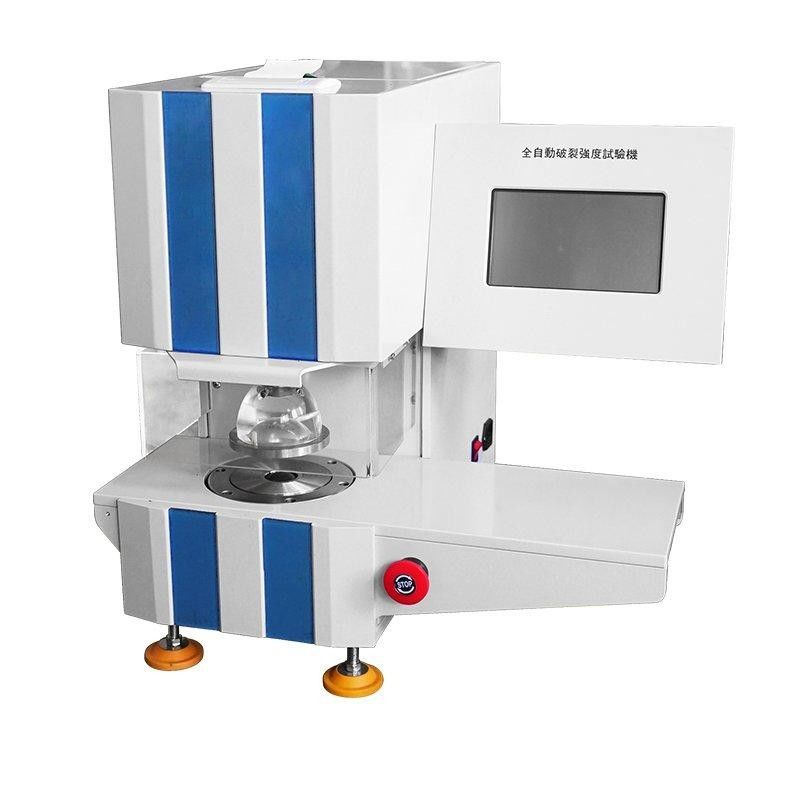

Large Image :  Automatic Corrugated Cardboard Bursting Resistance Strength Testing Equipment/Machine

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A504-C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Display: LCD Power: Electric
Port: ShenZhen Capacity (Optional): High Pressure 0~100 Kg/ Cm^2 (0.1kg/cm^2)
Accuracy: ± 0.5%

Automatic Corrugated Cardboard Bursting Resistance Strength Testing Equipment/Machine





Specifications

Corrugated Cardboard Bursting Testing equipments

1.Anti-vibration Motor 1/8 HP
2.Operation Method:Automatic
3.paper,cardboard testing



Introduction:

Corrugated Cardboard Bursting Testing equipment is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; Corrugated Bursting Testing equipments can also test cloth and synthetic leather. The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Corrugated Bursting Testing equipments' Accuracy has promoted 20 times more than the traditional gauge.



Uses:

Corrugated Cardboard Bursting Testing equipments is ideal for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.



Main technical parameters



Capacity (Optional) High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit Kpa, psi, kg/cm^2
Accuracy ± 0.5%
Pressure Range 250~5600kpa
Speed of Compression High Pressure 170± 10ml/min
Specimen Clamping Force >690kpa
Oil 100% silicon oil
Sensing method Pressure Transmitter
Indicating Method Digital
Display LCD
Material of the Ring Stainless Steel SUS304
Opening in Upper Clamp 31.5 ± 0.05 mm Diameter
Opening in Lower Clamp 31.5 ± 0.05 mm Diameter
Motor

Anti-vibration Motor 1/8 HP



Operation Method

Automatic



Dimension (L×W×H)

445×425×525 mm



Weight

Approx. 70 kg



Power Approx. 70 kg
Optional Configuration Printer, Air Pump

Design standard:JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539



The Character:

Corrugated Cardboard Bursting Testing equipment is applicable to test bursting strength for paperboard.

Advanced micro computer controller and digital processor ensure result precise.

Printer facility and fully detailed test reports.

Results of the tests are stored for viewing or for printing out as required.

User-friendly menu interface

Power protection ensure automatic record when power cut off.
