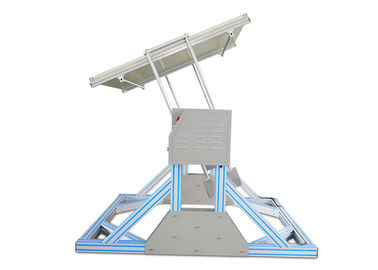

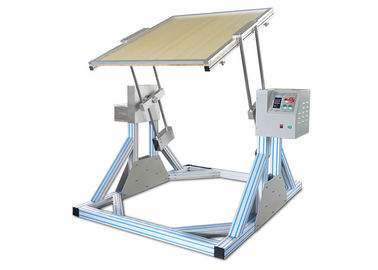

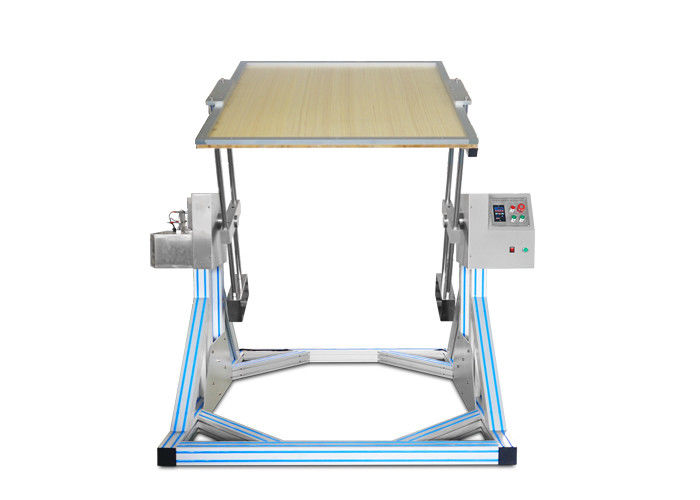

Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester

Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester
Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester

Large Image :  Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-J208
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Product Name: Strollers Testing Equipment Angle: 0 ° - 20 °
Design Standards: Motor
High Light:

fatigue testing equipment

,

dynamic test machine



Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester



Test status:
Basket or seat mounted on the frame. Operation basket or seat fixed on the frame 200 fixtures.
Load block A on the basket at the bottom of the class 0 car seat, or the B load block on the seat inside or F load block on the 0 + class car seat and fasten it to the center.
If the car bed design can carry more than one child using multiple test load placed on each one in each child take a regional.
Wheel or axle wagon is fixed in a rigid platform, this platform around the axis parallel to the ground.
Slowly accompanied by the test load car clockwise and counterclockwise rotation of 100 degrees to enable the fixtures to test load transferred to the frame. Test steps:
1, the test weight is placed on the baby inside the car, the four wheels of the stroller on the table;
2, manually wheel turn in the same direction 100 °, back in situ, and then reverse direction to turn 100 degree;

3. Observe the testing process, with the changes of position by force, strollers parts of the force to tear cause damage;



Parameters



Design standards EN1888
Control modes manual control
Test surface material P-60 sandpaper
Angle Modulation Motor
Angle Display Digital
Angle Accuracy Tolerance <1 degree
Maximum weight 100KG
Angle 0 ° - 20 °



Testing purposes:



Digital Display 100 Degree Rotary Table Strollers Testing Equipment is for the dynamic, the infant carrier or seat fixed on the frame of the device must not break down, loose or may not have any damage in the test or test.






 Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester 0
