100 Degrees Turntable Strollers Testing Machine For Baby Carriages

China Dongguan Haida Equipment Co.,LTD certification
China Dongguan Haida Equipment Co.,LTD certification
The instruments you recommend are very suitable for the testing needs of our laboratory products, after-sale is very patient to answer all our questions, and guide us how to operate, very nice.

—— Div Harish

You are very professional partners and we are willing to establish long-term cooperative relations with you.

—— Wojtek Krawczyk

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Manuel Munoz

I'm Online Chat Now

100 Degrees Turntable Strollers Testing Machine For Baby Carriages

100 Degrees Turntable Strollers Testing Machine For Baby Carriages
100 Degrees Turntable Strollers Testing Machine For Baby Carriages 100 Degrees Turntable Strollers Testing Machine For Baby Carriages 100 Degrees Turntable Strollers Testing Machine For Baby Carriages 100 Degrees Turntable Strollers Testing Machine For Baby Carriages

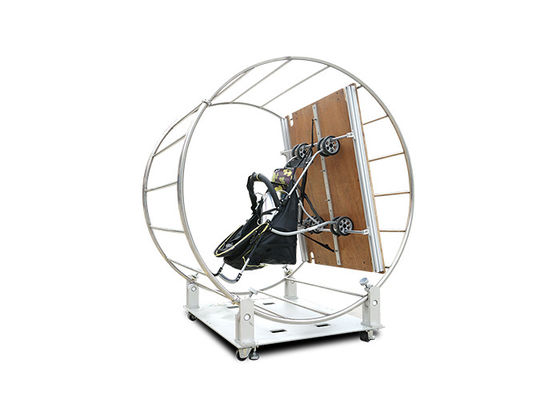

Large Image :  100 Degrees Turntable Strollers Testing Machine For Baby Carriages

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-J207
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electronic Power: Manual
Port: <1 Degree Weight: 100kg
High Light:

fatigue testing equipment

,

strollers testing equipment

100 Degrees Turntable Strollers Testing Machine For Baby Carriages



Technical specifications:



Control modes manual control
Test surface material P-60 sandpaper
Angle adjustment Manual
Angle Display Digital,
Angle Accuracy Tolerance <1 degree
Maximum weight  100KG
Angle 0 ° - 20



Testing purposes:



the dynamic, the infant carrier or seat fixed on the frame of the device must not break down, loose or may not have any damage in the test or test.



Design standards: EN1888




Test status:


Basket or seat mounted on the frame. Operation basket or seat fixed on the frame 200 fixtures.
Load block A on the basket at the bottom of the class 0 car seat, or the B load block on the seat inside or F load block on the 0 + class car seat and fasten it to the center.
If the car bed design can carry more than one child using multiple test load placed on each one in each child take a regional.
Wheel or axle wagon is fixed in a rigid platform, this platform around the axis parallel to the ground.
Slowly accompanied by the test load car clockwise and counterclockwise rotation of 100 degrees to enable the fixtures to test load transferred to the frame. Test steps:
1, the test weight is placed on the baby inside the car, the four wheels of the stroller on the table;
2, manually wheel turn in the same direction 100 °, back in situ, and then reverse direction to turn 100 °;

3, Observe the testing process, with the changes of position by force, strollers parts of the force to tear cause damage;
