Electronic Fabric Accelerated UV Lamp Tester For Sunlight Resistant Test

Electronic Fabric Accelerated UV Lamp Tester For Sunlight Resistant Test
Electronic Fabric Accelerated UV Lamp Tester For Sunlight Resistant Test
video play

Large Image :  Electronic Fabric Accelerated UV Lamp Tester For Sunlight Resistant Test

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E802
Power: Electric
Port: Shenzhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Humidity Range: About 45% ~ 70% R.H Material: SUS 304 Steel
Power: Electronic Product Name: Uv Test Chamber
Temperature Control: PID Ssr Control Temperature Resolution: 0.1 ℃
Voltage: 220V ± 5%;single-phase Three-wire;50Hz;10A;15A GFCI Requirements Wavelength Range: UV-A Wavelength Range Of 315 ~ 400nm
High Light:

accelerated aging chamber

,

uv aging test chamber

Fabric UV Aging Test Chamber , Accelerated UV Lamp Tester For Sunlight Resistant Test




Product description:

This UV Aging Test Chamber simulating the UV radiation and condensation in natural sunlight, the weathering test of the material is carried out to obtain the results of the weather resistance of the material.


Application industry (not limited to the following):
1. Paint ink paint, resin, plastic
2. Printing and packaging, aluminum, adhesives
3. Motorcycle industry, cosmetics,fabric,textile
4. Metal, electronics, electroplating, medicine and so on.

Applications function:
1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.

Test standard(inculding but not limited to... ):
Compliance with ASTM G53-77 specifications GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS and SAE.

The main technical parameters:



Item Specification
Outside dimension 1300W×500D×1460Hmm
Chamber material SUS#304 stainless steel
Temperature range RT~70℃
Temperature fluctuation ±2℃
Temperature control PID SSR control,PID self - tuning temperature control mode
Humidity range: about 45%~70% R.H.
Controller Programmable controller, LCD touch screen
Control mode Balance temperature humidity control (BTHC)
Test cycle setting Exposure, condensation and water spray test cycle is programmable
Lamp power 40W/Piece
Distance from sample to lamp 50±2mm
Centre distance between the lamp 70mm
Irradiance 0.45~0.8W/m2 (optional)
UV lamps Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
Standard Specimen Size 75x150mm (48pcs), max. thickness 5mm
Testing time 0~999H, adjustable
Protection system

Overload short circuit protection
Over temperature protection
Water lacking protection
Earth leakage protection
Auto shut off protection

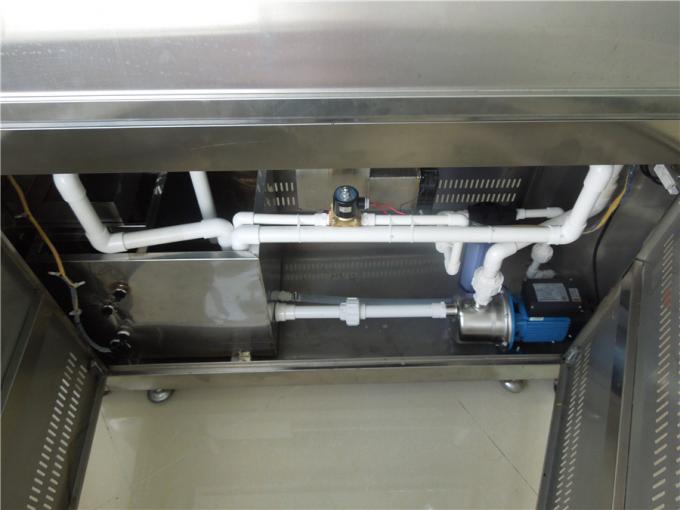

 Electronic Fabric Accelerated UV Lamp Tester For Sunlight Resistant Test 0



Chamber Structure

The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

Control System:

Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.



Test Specimen Mounting:

The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.

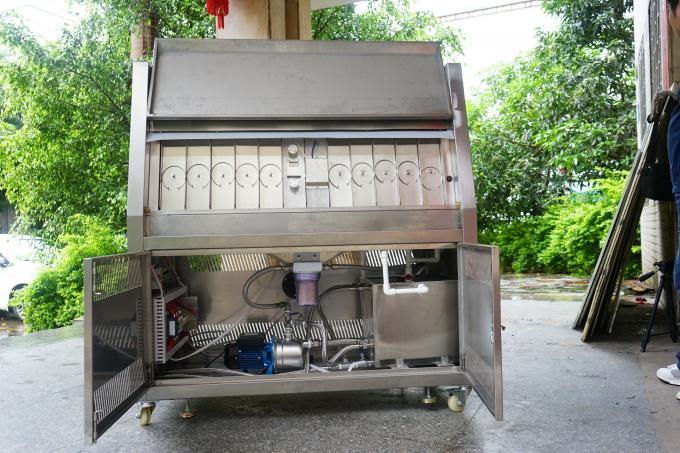

Electronic Fabric Accelerated UV Lamp Tester For Sunlight Resistant Test 1
