Traverse Motion 35 ± 0.5 Mm Textile Testing Equipment Automatic Wrap Reel Test Machine

China Traverse Motion 35 ± 0.5 Mm Textile Testing Equipment Automatic Wrap Reel Test Machine supplier

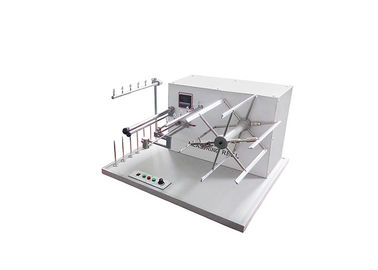

Large Image :  Traverse Motion 35 ± 0.5 Mm Textile Testing Equipment Automatic Wrap Reel Test Machine

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: CE, , ISO
Model Number: HD-W807

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10set/ month
Contact Now
Detailed Product Description
Operating Speed: 100 ± 2 Rpm (20-250rpm Adjustable) Traverse Motion: 35 ± 0.5 Mm
Pre-tension: 0 -100 CN

Traverse Motion 35 ± 0.5 Mm Textile Testing Equipment Automatic Wrap Reel Test Machine



Product description:

Automatic Wrap Reel ,also as a kind of textile testing equipment,is an ideal equipment to produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing. Supplied with 1 meter or 54 Inches Collapsible arm Swift/wheel (Specify)



Automatic Wrap Reel For Textile Usage

Automatic Wrap Reel For Textile To produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing.



Automatic Wrap Reel For Textile Testing standards

ASTM D1907 Textile Testing Equipment Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method

ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems

ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method

BS 2010 Method for determination of the linear density of yarns from packages

DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)



Automatic Wrap Reel For Textile Salient features

1. Wrap reels available in Metric and English system.

2. Digital control panel with resettable revolution counter.

3. Equipped with a yarn-tensioning device.

4. Speed from 20 up to 250 r.p.m.

5. Six Skeins (lea/hank) can be made together.

6. Complete with all accessories.

7. Supplied with inspection & calibration certificates.



Automatic Wrap Reel For Textile Technical parameter:



Number of leas made at a time 6
Spread of each lea 60 mm
Swift/wheel circumference 1.5 yards or 1 meter
Operating speed 100 ± 2 rpm (20-250rpm adjustable)
.Digital Counter (Preset Type) 0–9999,LED
Traverse motion 35 ± 0.5 mm
Pre-tension 0 -100 cN
Dimensions 780 x 660 x 480 mm
Power supply 220V,50Hz or 110V,60Hz
Weight 53 Kg


Automatic Wrap Reel For Textile Accessories



Main Unit 01 No.
Power Cord 01 No.
This User’s Manual 01 No.
Inspection & Conformance Certificate 01 No.
