|Purpose:||Resistance To Blood Penetration||Test Standard:||ISO 22609, ASTM F1862-07|
|Power:||AC 220V± 10% 50Hz||Dimension:||910mmx420mmx400mm(L*W*H)|

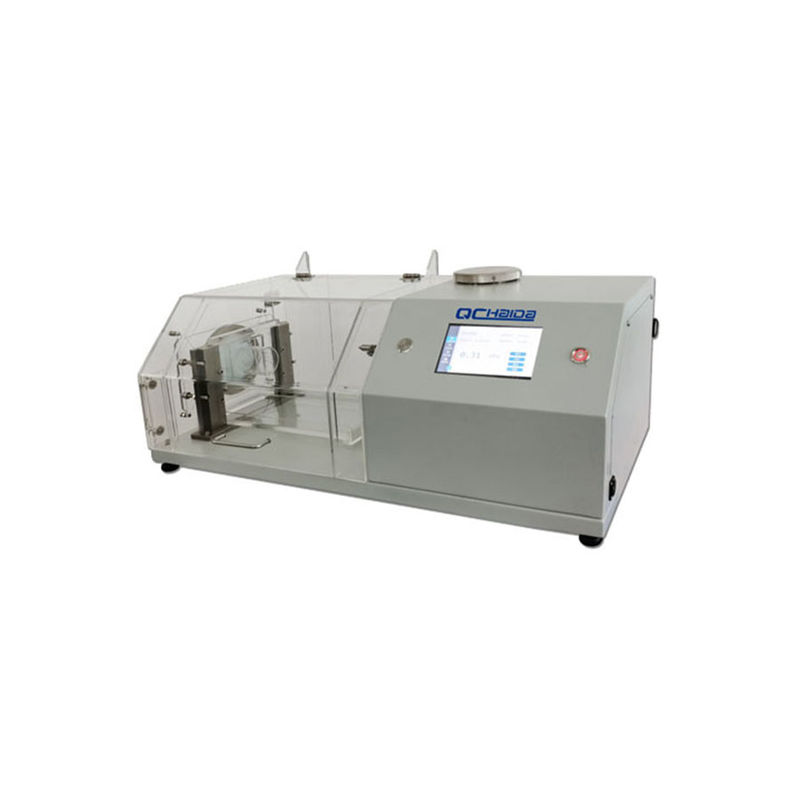

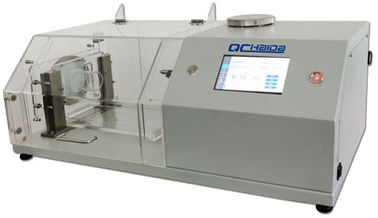

Surgical Mask And Protective Clothing Synthetic Blood Penetration Resistance Testing Equipment
Medical protective clothing synthetic blood penetration resistance testing machine is used to measure the resistance of medical protective clothing to the penetration of synthetic blood under different test pressures, and can also be used to determine the blood penetration resistance of other coating materials.
ISO 22609, ASTM F1862-07 Infectious pathogen protective equipment, medical masks,medical protective clothing, synthetic blood penetration resistance test method (fixed volume, horizontal injection)
|Model||HD-W810-4 synthetic blood penetration resistance test machine|
|Spray stroke||30 ± 1cm (adjustable between 280-320mm);|
|Spray port diameter||Ø0.84mm|
|Pressure range||6 -30kPa (± 0.2 Kpa)|
|Power||AC 220V± 10% 50Hz|
1. Using air compression method, compression speed is faster, pressure control precision is higher and the more widely available pressure range.
2. Use the control system software to control the pressure and injection time. After setting the pressure, it can be automatically adjusted. The pressure and spray time are displayed digitally, which can be adjusted accurately according to the actual situation;
3. The nozzle can be adjusted within ± 20mm and can be used for non-standard tests;
4. The main accessories are corrosion-resistant, which can work for a long time in a high humidity environment;
5. Configure the liquid sputtering collection structure, the liquid collection is convenient after the test and the test process will keep clean and tidy;
6. The test area adopts closed design.
Haida, as a large-scale manufacturerfocused on physical testing instruments, the mission of "Deliver the best testing equipment to our customers".
Haida products are widely used in various scientific researches, quality inspection organizations, academic exploration and other major fields, and products in line with GB, ISO, UL, ASTM, EN, JIS, TAPPI, DIN, BS and other domestic and international standards.
