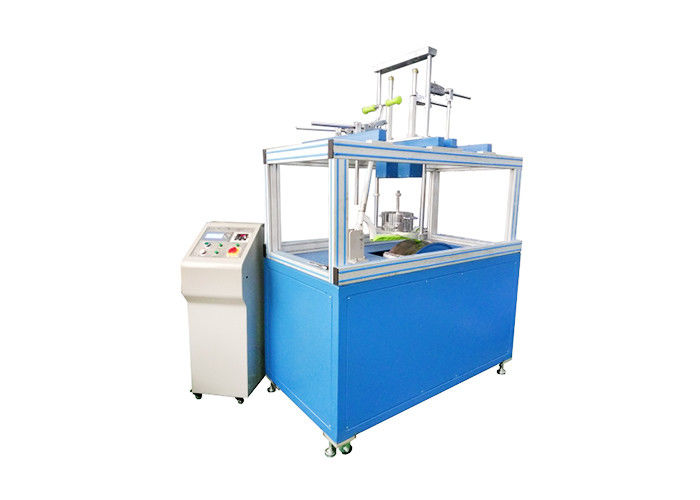

Blue Endurance Testing Machine , Infant Scooter Dynamic Test Equipment

China Blue Endurance Testing Machine , Infant Scooter Dynamic Test Equipment supplier
Blue Endurance Testing Machine , Infant Scooter Dynamic Test Equipment supplier Blue Endurance Testing Machine , Infant Scooter Dynamic Test Equipment supplier

Large Image :  Blue Endurance Testing Machine , Infant Scooter Dynamic Test Equipment

Product Details:

Place of Origin: China
Brand Name: HAIDA
Model Number: HD-J222

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Circumferential Peed: 0.5m/s Running Stroke: 25km
Roller Diameter: ≥Ф700mm

Scooter Endurance Test Machine Baby Scooter Dynamic Test Equipment



STANDARD FEATURES

Item Description
Circumferential peed 0.5m/s
Running stroke 25km
Roller diameter ≥Ф700mm
Load weight Class A: (45±0.5)kg over a length of 75mm centrally over the deck axle
Class B: (25±0.5)kg over a length of 75mm centrally over the deck axle
Standard requirement The distance between the raised sections shall be such the kick scooter passed over one ramp every 1.5 s.





APPLICATION

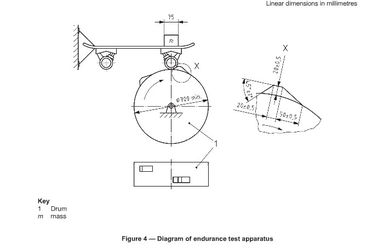

This tester is designed in accordance with EN13613. Its purpose is to simulate the degree of dynamic durability of the scooters, skates, and the body of the vehicle when it is in motion (also used as a test for other products) to provide a reliable basis for improving the quality of dynamic durability. This machine drives the sprocket through the motor to drive the rotation of the sprocket and achieve the test purpose by adjusting the rotation speed of the motor to change the rotation speed of the drum.

Blue Endurance Testing Machine , Infant Scooter Dynamic Test Equipment
