Product Details:
Payment & Shipping Terms:
|
| Gross Weight: | 770kg | Packaging Dimensions: | (WxDxH) 1930*1230*1880mm |
|---|---|---|---|
| Use: | Carton Or Other Packaging Container | Control System: | Microcomputer Control, Touch Screen |
| Report Output: | Mini-printer, Thermal Printing | Data Display: | Load, Displacement, Speed |
| High Light: | Screen Control Box Compression Test Machine,Microcomputer Compression Test Machine |
||

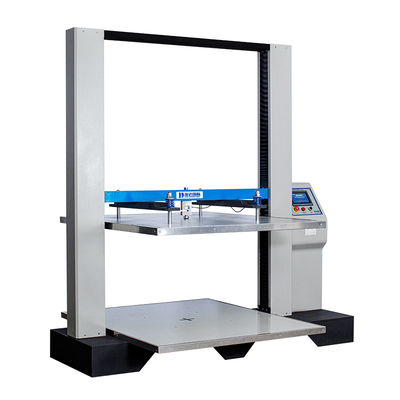

ISTA Standard Test Machine Screen Control Box Compression Test Machine Microcomputer
PRODUCT DESCRIPTION
This Microcomputer Box Compression Tester is specialized for testing the compression performance of cartons. Generally, suitable for compression test and stacking test of the corrugated cartons, honeycomb boxes an etc packages. Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc.
STANDARD FEATURES
| Item | Description |
| Max. Force | 2000 kg (20KN) |
| Load cell | 1 load cell |
| Control system | Microcomputer control, Touch screen |
| Motor | AC motor, guild rod |
| Force reading | kgf, Ibf, N etc |
| Load cell Resolution | 1/100,000 |
| Load Precision | within ±0.5% |
| Parallelism of Platens | Parallel within ±5mm |
| Effective test area | 1000×1200×1000mm |
| Test speed | 10 ±3mm/min |
| Report output | Mini-printer, thermal printing |
| Data display | Load, displacement, speed |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches |
ISTA 3-Series protocols are General Simulation Performance Tests that are designed to provide a laboratory simulation of the damage-producing motions, forces, conditions, and sequences of transport environments.
ISTA creates standards for packaging design to ensure the safe arrival of the package's contents and provides laboratory certification to confirm all facilities are properly equipped to perform pre-shipment testing of packaged-products in accordance with ISTA standards.
COMPANY INTRODUCTION:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
