Product Details:
Payment & Shipping Terms:
|
| Accuracy: | ±0.5% | Capacity: | 5kg,50kg (Push-pull Gauge Optional) |
|---|---|---|---|
| Max. Stroke: | 900mm (include The Fixture) | Power: | Electronic |
| Resolution: | 1/100,000 | Sensor: | Load Cell |
| Test Speed: | 0.1-300mm/min (adjusted By The Knob ) | Type: | Universal Tensile Testing Machine |
| High Light: | electronic universal testing machine,compressive strength testing machine |
||

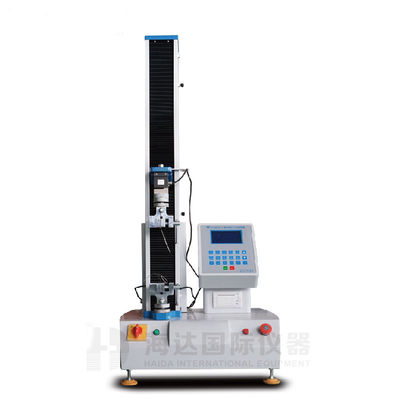

Desktop Tensile Testing Machines , Microcomputer LCD Display Tensile Test Equipment
Product Description:
LCD Display Tensile Test Equipment is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Desktop Tensile Testing Machines , LCD Display Tensile Test Equipment
Main Technical Parameter:
|
Items |
Specification |
|
Sensor |
LOAD CELL |
|
Capacity |
2kg,50kg (Push-pull gauge optional) |
|
Unit switchover |
kg, N |
|
Display device |
Pointer type & LCD display |
|
Resolution |
1/10,000 |
|
Accuracy |
±1% |
|
Max. stroke |
900mm (include the fixture) |
|
Test speed |
0.1-300mm/min (adjusted by the knob ) |
|
power |
1∮,AC220V 50HZ |
|
Weight |
Approx.30kg |
|
Accessories |
One set tensile clamp, one piece English software CD, one piece operation video CD, one piece English user manual |
Theory:
Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen.And the strength value will be displayed automatically on the computer
Product Features:
1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)
2. Control system: Microcomputer
3. Displacement resolution: 0.001mm
4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.
