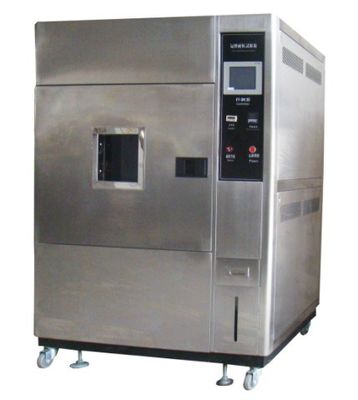

Weather Resistant Xenon Test Chamber / Xenon Weathering Test , Stainless Steel

Weather Resistant Xenon Test Chamber / Xenon Weathering Test , Stainless Steel
Weather Resistant Xenon Test Chamber / Xenon Weathering Test , Stainless Steel
video play

Large Image :  Weather Resistant Xenon Test Chamber / Xenon Weathering Test , Stainless Steel

Product Details:
Place of Origin: Guangdong, China (Mainland
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E711-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Box Material: Stainless Steel SUS304# Control System: Germany KLOCKNER-MOELLER Programmable Controller
Inner Box Size: 750*500*600mm Power: Electronic
Product Name: Xenon Test Chamber Rainfall Time: 1~9999min, Adjustable
High Light:

uv aging test chamber

,

aging test machine

Weather Resistant Xenon Test Chamber / Xenon Weathering Test , Stainless Steel





Application

Purpose: Xenon arc test chamber are used for the best simulation of full-spectrum sunlight to reproduce destructive waves existing in different environments. Used for scientific research, product development and quality control to provide the appropriate environment simulation and accelerated testing. Xenon weathering test can be used for the durability test after the selection of new materials, improving existing assessment materials or changes in material composition changes, this test chamber can be use for best simulation of material changes when exposure to the sun in different environmental conditions.



Weather Resistant Xenon Test Chamber / Xenon Weathering Test , Stainless Steel 0



Features



1. Advanced design technology and concept

2. Excellent technology of producing and outstanding system of quality management,

3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet, visible and infrared.

4. A full range of spectrum, necessary for most textile sun and color fastness test.



CompanyServices



All Haida employees adhere to the" Quality comes from precision,quality creates the future"business philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand

consumers' needs.



XenonTesting Machine



Studio size (mm) 750*500*600mm
External size (mm) 1350X1200X1750 (length × depth × height)
Temperature range normal temperature ~80℃
Humidity range light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable
Temperature of the test blackboard adjustable from 45℃ to 100℃ (deviation ±3℃)
Temperature fluctuation ≤±0.5℃
Temperature uniformity ≤±2.0℃
Humidity fluctuation ≤±2%
Glass filter borosilicate glass
Xenon light source imported air-cooled xenon arc source
Xenon lamp power 2.5kw, xenon lamp power is 2.5kw ×3 = 5.4kw, life is 1200 hours
Rainfall time 1 ~ 9999 minutes, continuous rainfall adjustable
Rainfall cycle 1 ~ 240 minutes, interval (break) rainfall adjustable
Spray nozzle aperture Ф 0.8 mm (return hose ultra-fine filters to prevent the nozzle blocking)
Spraying period (spraying time/no spraying time) 18min/102min or 12min/48min(spraying time/no spraying time)
Water spraying pressure 0.12 ~ 0.15Mpa
Water pressure 0.12 ~ 0.15kpa
Sample rack the size of sample tray is 75×300mm
The continuous adjustable time of illumination cycle 1 ~ 999 hours
Xenon lamp spectral wavelength 290nm ~ 800nm adjustable
Irradiance range 500W ~ 1200W/㎡ adjustable.
Distance from arc center to sample 250 ~ 300mm
Effective exposure area 6400C㎡
Heating power 4.5kw
Humidifying power 3KW
