Rubber Film Plastic Testing Machine , Izod Charpy Pendulum Impact Tester ASTM D256

China Rubber Film Plastic Testing Machine , Izod Charpy Pendulum Impact Tester ASTM D256 supplier

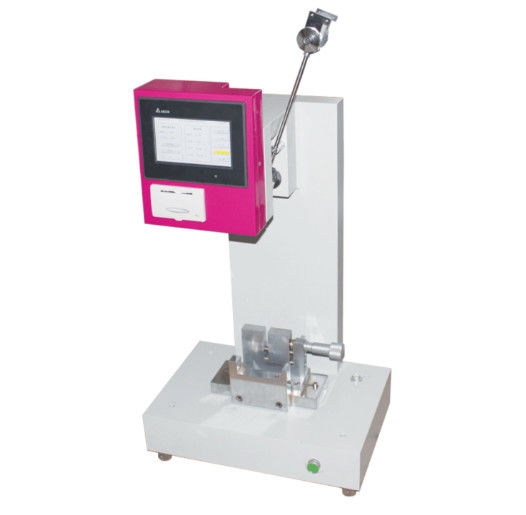

Large Image :  Rubber Film Plastic Testing Machine , Izod Charpy Pendulum Impact Tester ASTM D256

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-R802-4
Power: Electric
Port: ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Product Name: Chary Impact Tester Power: Electronic
Impact Velocity: 3.8 M/s General Material: Coating Specimens,Plastic Specimens
Balls Control Method: Manual Setting Volume(about): 50cm×50cm×150cm

Rubber Film Plastic Testing Machine , Izod Charpy Pendulum Impact Tester ASTM D256

Order process
We offer below business term
Accepted Delivery Terms FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency USD, EUR, HKD, CNY
Accepted Payment Type T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired
Haida Service: 1. Device installation; 2. Technology training; 3. Equipment Calibration; 4. Free software upgrades; 5.Product operation instruction/video; 6.Experiment Test (test application, test report); 7. 1 year warranty period


Chary Impact Tester Introduce:

Chary Impact Tester is used for impact toughness determination of rigid plastics, enhanced nylon, glass fiber, reinforced plastics, ceramics, cast stone, insulation material and other nonmetal materials. It is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department and professional manufacturer laboratory.



Chary Impact Tester Application:

Chary Impact Tester is used to measure the impact resistance of specimens of various ductile materials subjected to impact at specified angles and loads.



Chary Impact Tester Application Standard:

ASTM D256, ISO 180, GB/T 1843. JIS K7110



Standard Features:

Capacity 7.5, 15, 25, 50J 1, 2.75, 5.5, 11, 22J
Impact velocity 3.8 m/s 3.5 m/s
Test angle 160° 160°
Impact blade angle 30°±l° 75°±l°
Distance between jaw and support line 40 mm,62mm, 70 mm,95mm Wedge jaw, general type
Blade filleted radius R=2±0.5mm R=0.8mm±0.2mm
Jaw radius R=1±0.1mm R=1±0.1mm
Design standard ISO 179 ISO 180
Display LCD Touch Screen
Weight 120KG
Dimension 550mm×350mm×850mm
Power AC220V±10%, 50/60Hz, single phase

Rubber Film Plastic Testing Machine , Izod Charpy Pendulum Impact Tester ASTM D256

Our Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service:
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service :
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan

We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
