ASTM ISO R300mm Izod Impact Testing Machine With DC Solenoid Control

Brand Name:	HAIDA
Model Number:	HD-R602
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Capacity:

1, 2.75, 5.5, 11, 22J

Power:

Electronic

Impact Velocity:

3.5 M/s

Falling Ball Control:

DC Solenoid Control

Ball Weight:

357,533,1042,2280 G

Design Standards:

JIS-K6754, A5430, ISO 6603, BS4660, BS4514, BS3505

Supply Ability:

300 Sets per Month Haida

Highlight:

universal tensile testing machine

compressive strength testing machine

Product Description

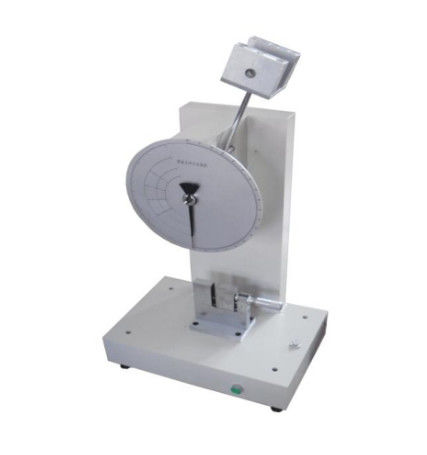

Izod Impact Tester ASTM ISO r300mm Impact Testing Machine

Product Description:
Izod Impact Tester is used for impact toughness determination of rigid plastics, enhanced nylon, glass fiber, reinforced plastics, ceramics, cast stone, insulation material and other nonmetal materials. It is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department and professional manufacturer laboratory.

Design Standards:
JIS-K6754, A5430, ISO 6603, BS4660, BS4514, BS3505, BS2782: 11 Part: Method 1108A,, ASTM D5420, ASTM D3029

The main technical parameters:

Capacity	1, 2.75, 5.5, 11, 22J
Impact velocity	3.5 m/s
Test angle	160°
Impact blade angle	75°±l°
Distance between jaw and support line	Wedge jaw, general type
Blade filleted radius	R=0.8mm±0.2mm
Jaw radius	R=1±0.1mm
Design standard	ISO 180

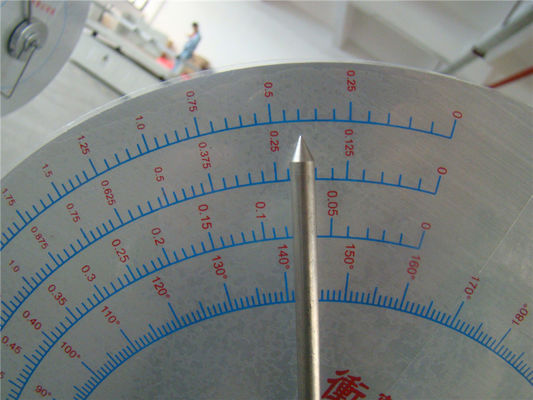

Display	Dial
Weight	80KG

ASTM ISO R300mm Izod Impact Testing Machine With DC Solenoid Control 0

Product Features:
1 unique design, or components used to assess the impact properties of the specimen
2 the drop height up to 2000mm, can produce the maximum 6.264m / s impact velocity
3 hammer weighing between 10kg 1.25kg maturity
4 Maximum impact energy of 196 joules
