|Temperature Range:||-50c To +100c||Dimension (Internal) (w X D X H):||1500 X 1500 X 3000 Mm|
|Dimension (External) (w X D X H):||2850 X 1700 X 3200 Mm||Accuracy:||Temp. ±1c, Humidity ±2.5%Rh|
|Sound Pressure Level:||<72db (a)||Condenser Cooling:||Water Cooled|

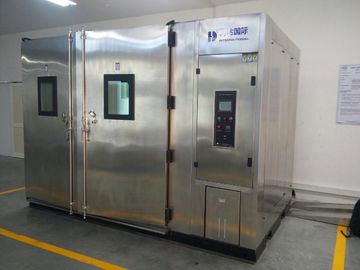

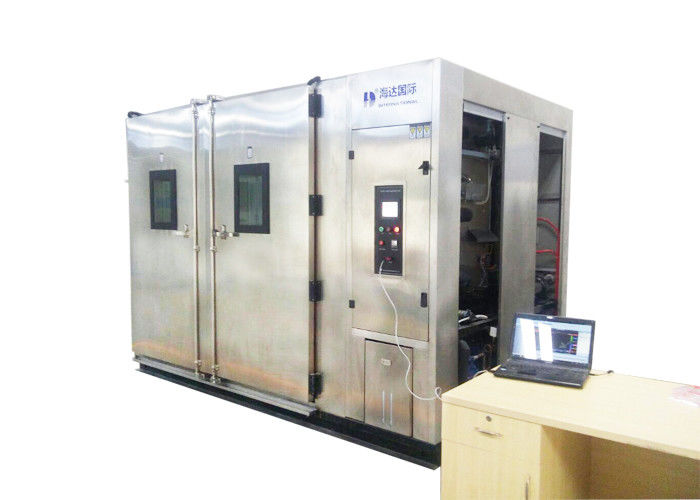

Walk In Chamber Ovreview:
This walk in chamber design is humanized, can see in the box inside the test condition through the glass window.and it is easy to operate with touch screen system for 32 Bit Control And Monitoring System.
walk in chamber is a environment aging chamber with temperature and humidity testing.walk in chamber can accurately simulate low-temperature, high temperature, high temperature and humidity, low temperature and humidity and other complex natural environment, applicable to plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries in the reliability of product testing.
Walk In Chamber Application Test Items:
|1||Temperature Range||-50c To +100c|
|2||Humidity Range||40% To 98% Rh|
|3||Dimension (Internal) (w x d x h)||1500 x 1500 x 3000 Mm|
|4||Dimension (External) (w x d x h)||2850 x 1700 x 3200 Mm|
Variable, Temp. 0~5c / Min & Humidity 0~5%/Min
In Average, No Load
|6||Accuracy||Temp. ±1c, Humidity ±2.5%Rh|
|7||Interior Walls||Stainless Steel 304|
|8||Exterior Walls||Cold Rolled Stell Plate With Baking Finish|
|9||Temperature & Humidity Measurement And Controller||
32 Bit Control And Monitoring System.
Interface Facility With Rs232
Programmable Temp. Humid. Controller
|10||Viewing Window||Multi Pane Glass Window Size|
|11||Port Holes||50 Mm Diameter For Wire Routing|
|12||Power Supply Requirement||Three Phase, Ac380 v ± 10 %, 50 Hz|
|13||Sound Pressure Level||<72db (a)|
|14||Condenser Cooling||Water Cooled|
1) Adopt Tecumseh compressor.
2) Refrigerant: Non-fluorine environmental protection refrigerant.
3) Condenser: Water-cooled type condenser
4) Heating, cooling and humidity system are independently which can improve efficiency and decrease testing cost.
5) Air circulation system: Uniform the distribution of temperature in inner chamber.
