Automatic Electronic Textile Testing Equipment Yarn Reel Tester / Wrap Reel for Textile

China Automatic Electronic Textile Testing Equipment Yarn Reel Tester / Wrap Reel for Textile supplier
Automatic Electronic Textile Testing Equipment Yarn Reel Tester / Wrap Reel for Textile supplier Automatic Electronic Textile Testing Equipment Yarn Reel Tester / Wrap Reel for Textile supplier

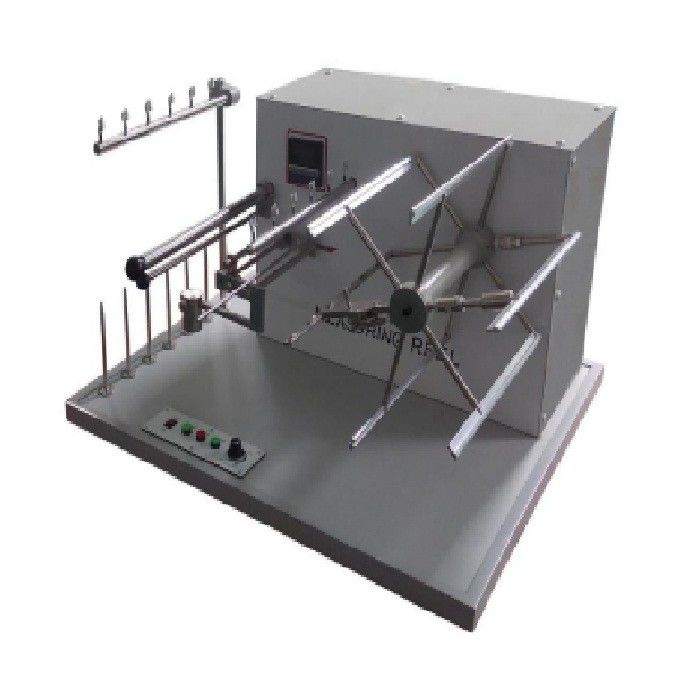

Large Image :  Automatic Electronic Textile Testing Equipment Yarn Reel Tester / Wrap Reel for Textile

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: GB/T12704 ASTM E90 JIS L1099 BS 7209
Model Number: HD-YG086

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10set/ month
Contact Now
Detailed Product Description
Number Of Leas Made At A Time: 6 Spread Of Each Lea: 60 Mm
Swift/wheel Circumference: 1.5 Yards Or 1 Meter Digital Counter (Preset Type): 0-9999,LED
Traverse Motion: 35 ± 0.5 Mm Pre-tension: 0 -100 CN

Textile Testing Machine Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile


Product description:


Automatic Wrap Reel ,also as a kind of textile testing equipment,is an ideal equipment to produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing. Supplied with 1 meter or 54 Inches Collapsible arm Swift/wheel (Specify)


Automatic Wrap Reel For Textile Usage:


Wrap Reel For Textile To produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing.

Automatic Wrap Reel For Textile Testing standards:


ASTM D1907 Textile Testing Equipment Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method
ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems
ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method
BS 2010 Method for determination of the linear density of yarns from packages
DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)


Automatic Wrap Reel For Textile Salient features:


1. Wrap reels available in Metric and English system.
2. Digital control panel with resettable revolution counter.
3. Equipped with a yarn-tensioning device.
4. Speed from 20 up to 250 r.p.m.
5. Six Skeins (lea/hank) can be made together.
6. Complete with all accessories.
7. Supplied with inspection & calibration certificates.

Automatic Wrap Reel For Textile Technical parameter:



Number of leas made at a time 6
Spread of each lea 60 mm
Swift/wheel circumference 1.5 yards or 1 meter
Operating speed 100 ± 2 rpm (20-250rpm adjustable)
.Digital Counter (Preset Type) 0-9999,LED
Traverse motion 35 ± 0.5 mm
Pre-tension 0 -100 cN
Dimensions 780 x 660 x 480 mm
Power supply 220V,50Hz or 110V,60Hz
Weight 53 Kg


Automatic Wrap Reel For Textile Accessories



Main Unit 01 No.
Power Cord 01 No.
This User's Manual 01 No.
Inspection & Conformance Certificate 01 No.



Automatic Electronic Textile Testing Equipment Yarn Reel Tester / Wrap Reel for Textile




Customer feedback:

Automatic Electronic Textile Testing Equipment Yarn Reel Tester / Wrap Reel for Textile





Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.



3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
