Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control

China Dongguan Haida Equipment Co.,LTD certification
China Dongguan Haida Equipment Co.,LTD certification
The instruments you recommend are very suitable for the testing needs of our laboratory products, after-sale is very patient to answer all our questions, and guide us how to operate, very nice.

—— Div Harish

You are very professional partners and we are willing to establish long-term cooperative relations with you.

—— Wojtek Krawczyk

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Manuel Munoz

I'm Online Chat Now

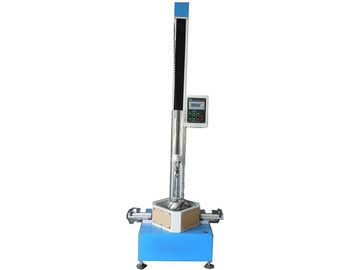

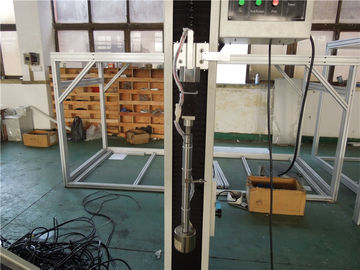

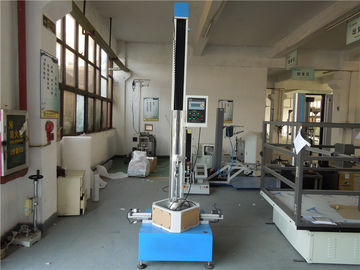

Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control

Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control
Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control

Large Image :  Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-R601
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Maximum Height: 2M Falling Ball Control: DC Solenoid Control
Ball Weight: 357,533,1042,2280 G Volume: 50 × 50 × 210cm
Power Source: 220V/50HZ Brand: Haida
High Light:

rubber testing equipments

,

rubber hardness tester

                               Fall Ball Impact Fatigue Testing Machine for plastic / ceramic / glass fiber

Falling ball impact test machine Product Description:


Falling ball impact test machine for plastic / ceramic / glass fiber and other materials fastness testing. Test method: falling ball impact test machine test method in order to provide the weight of the ball, adjust to a certain height, so that free fall against the specimen, depending on the extent of the damage, to determine quality. Falling distance of up to 2m, drop weight can be adjusted between 1.25kg to 10kg, can provide a variety of sample holder.

Design Standards: JIS-K6754, A5430, ISO 6603, BS4660, BS4514, BS3505, BS2782: 11 Part: Method 1108A,, ASTM D5420, ASTM D3029

The main technical parameters:



Maximum height 2m
Falling Ball control DC solenoid control
Ball Weight 357,533,1042,2280 g
Volume 50 × 50 × 210cm
Weight about 30kg
Power source 220V/50HZ



Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control 0



Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control 1


Test method:
Drop hammer impact test machine / falling ball impact test machine: the impact energy by dropping height and weight is calculated as follows:
Hammer impact energy = weight (kg) * drop height (m) * g
g: acceleration due to gravity = 9.81m/s/s

Product Features:



1 unique design, or components used to assess the impact properties of the specimen
2 the drop height up to 2000mm, can produce the maximum 6.264m / s impact velocity
3 hammer weighing between 10kg 1.25kg maturity
4 Maximum impact energy of 196 joules



Electronic Rubber Testing Machine , 200 cm High Drop Ball Fall Impact Testing Machine with DC solenoid control 2
