|Spray Water Pressure:||80~100bar (8000~10000Kpa)||Water Flow:||14~16L/min|
|Spray Water Distance:||10~15cm||Spray Water Angle:||0°, 30°, 60°, 90°, Each Angle Spray For 30 Seconds|
|Sample Rotatory Table:||5rpm||Water Spray Interval Time:||30 Seconds (adjustable)|
|Water Cycling System:||Built-in Chamber Bottom For Recycling|

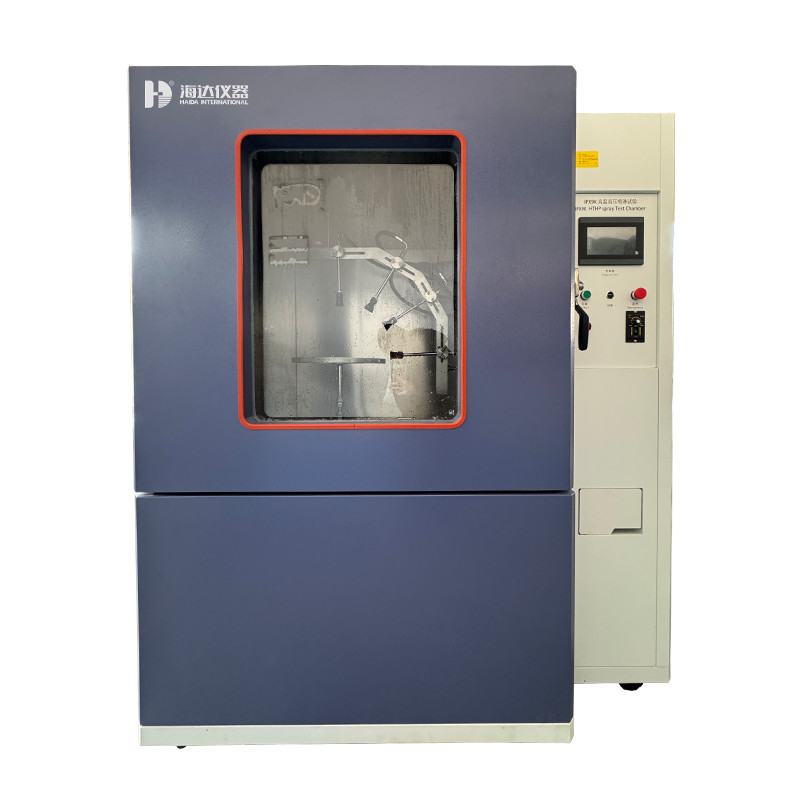

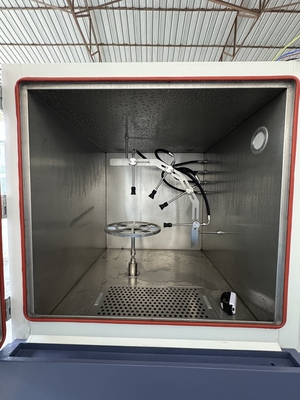

Automatic Environmental Test Climatic Chambers Ipx9 Rain Spray Test Chamber Manufacturer
Rain Spray Tester is widely used in the lamps and electrical and electronic product certification testing institutions and for testing the waterproof of electrical and electronic products of shell protection level.
Rain Spray Tester has been widely used in domestic commodity inspection bureau and the domestic and foreign products, quality authentication laboratory and the domestic and foreign well-known electronics manufacturers. Equipment performance had achieved the international advanced level, cost-effective.
Rain Spray Tester used to test anti-rain and water-proof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry etc.
Rain Testers With Good Quality, A complete set of IP waterproof test equipment is:
IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);
IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);
IPX3/4 handheld drench water test equipment (with lift stents);
IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);
IPX7/8 and the water immersion test equipment (with water temperature control and 10 atmospheric pressure adjustable);
Auxiliary water supply, filter system (with the above products, especially blunt water device).
Rain tester manufacturer applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; It provide an important testing data for scientific research, product development and quality control
Main Technical Parameter
|Internal chamber size||1000Wx1000Dx1200Hmm|
|External chamber size||1500Wx1200Dx2100Hmm|
|Spray water temperature||80ºC|
|Spray water pressure||80~100bar (8000~10000Kpa)|
|Spray water distance||10~15cm|
|Spray water angle||0°, 30°, 60°, 90°, each angle spray for 30 seconds|
|Sample rotatory table||5rpm|
|Water spray interval time||30 seconds (adjustable)|
|Water cycling system||Built-in chamber bottom for recycling|
|Controller||PLC touch screen|
|Chamber material||Internal: SUS304 stainless steel, external: stainless steel|
|Power||AC380V, 50Hz, three phase|
