Electronic Mechanical Tensile Testing Equipments 20KN Computerized

China Electronic Mechanical Tensile Testing Equipments 20KN Computerized supplier
Electronic Mechanical Tensile Testing Equipments 20KN Computerized supplier Electronic Mechanical Tensile Testing Equipments 20KN Computerized supplier Electronic Mechanical Tensile Testing Equipments 20KN Computerized supplier Electronic Mechanical Tensile Testing Equipments 20KN Computerized supplier Electronic Mechanical Tensile Testing Equipments 20KN Computerized supplier

Large Image :  Electronic Mechanical Tensile Testing Equipments 20KN Computerized

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B604B-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Accuracy: ≤0.5% Capacity: 500,1000,2000kg
Elongation Accuracy: 0.001mm Max. Stroke: 1000mm (including Fixture)
Motor: Panasonic Servo Motor Max Range Of Deformation: 800mm
Resolution: 1/250000 Extended Deformation:: Min Span: 25mm,50mm,100mm
Test Speed: 0.1-500mm/min (adjustable ) Type: Universal Tensile Testing Machine

Electronic Mechanical Tensile Testing Equipments 20KN Computerized



Standard:

  • ASTM D3574 Test E, ASTM D1623, ISO 1798: Tensile Test
  • ASTM D3574 Test F, ISO 8067: Tear Test
  • ASTM D3574 Test A: Density Test
  • ASTM D3574 Test B1, ISO 2439: IFD Test
  • ASTM D3574 Test H: Resilience (Ball Rebound) Test
  • ASTM D3574 Test I3: Dynamic Fatigue Test by Constant Force



APPLICATIONS

  1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
  2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
  3. Deformation under defined load: Test deformation under defined load of tested sample
  4. Load under defined deformation: Test load under defined deformation of tested sample
  5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Tensile Testing Equipments Application Industry:
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...



Tensile Testing Equipments Technical Parameter:

Items

Specification

Max range of deformation

800mm

Capacity

500, 1000, 2000KG

Unit Switchover

G, KG, N, LB

Display Device

PC

Resolution

1/250,000

Accuracy

±0.5%

Max. Stroke

1200mm (excluding fixture)

Test Speed

0.1-500mm/min (adjustable )

Motor

Panasonic Servo Motor

Screw

High Precise Ball Screw

Elongation Accuracy

0.001mm

Power

AC220V, single phase

Weight

Approx.155kg

Accessories

One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual



Features of 20KN computerized electronic mechanical tensile testing machine

1. Adopting windows platform, and all the parameter settings can be processed in the dialog box,

and it operates easily;

 2. Using a single-screen operation; do not need to switch the screen;

 3. With three languages in Simplified Chinese, Traditional Chinese and English, the software

 interface can be switched easily

 4. The pattern of Test reports can be self-designated;

 test data can be displayed directly in the main screen;

5. Choosing translational, comparative mode at the same time to make a number of curve

 data comparison;

 6. With a variety of measurement units, Measure In Imperial & Metric are switchable;

 7. With self-return & auto-correction function;

 8. With automatic magnification function, in order to achieve the most appropriate size

of the graphics;

 9. With the user-defined Test methods; with experimental data analysis function;

10. High quality, accurate and reliable models with reasonable price.

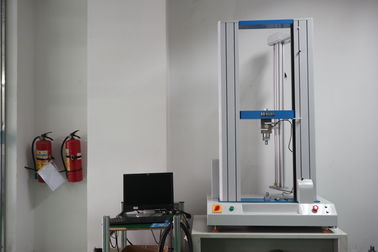

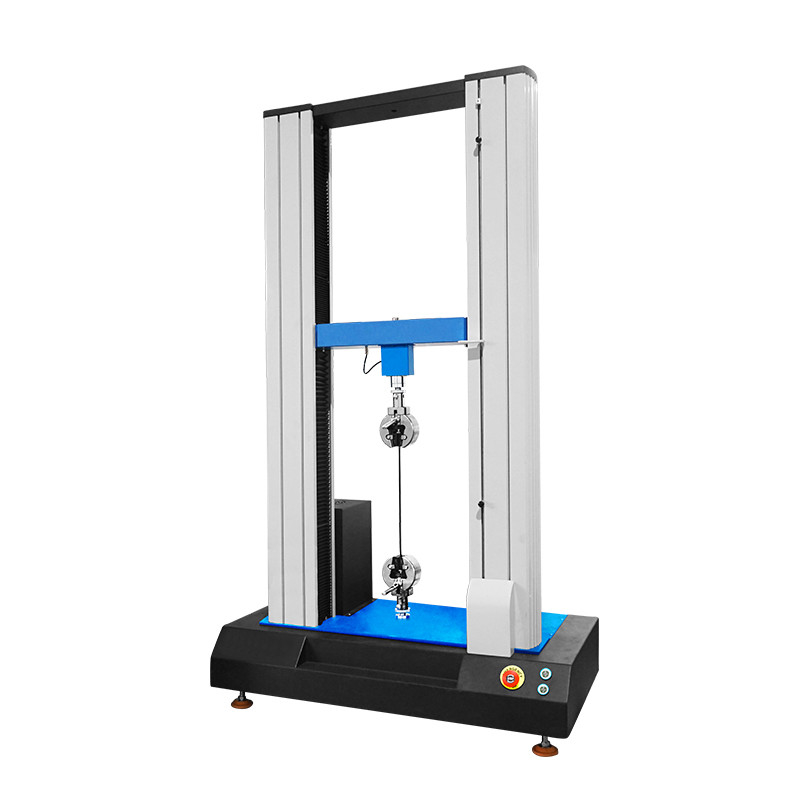

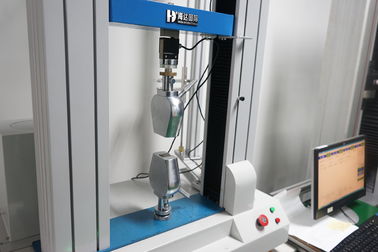

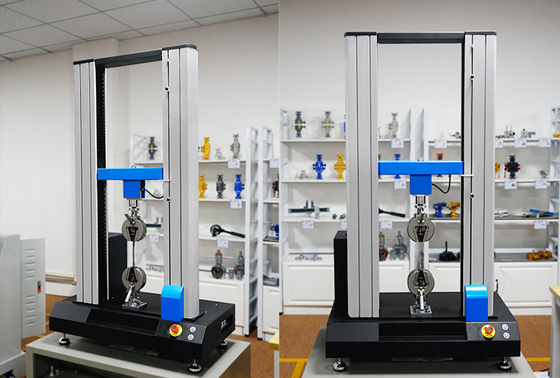

The images of 20KN computerized electronic mechanical tensile testing machine

Electronic Mechanical Tensile Testing Equipments 20KN Computerized


Company Information

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.



FAQ

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's
not from our factory. What you need to do is to send us the controller.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence
to us.

4.Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film
before put them into the wooden case, which not only has good shock absorption, impact resistance,
heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency
etc.
