Touch Screen Panel Lens Laboratory Testing Machine With PLC Control System

China Touch Screen Panel Lens Laboratory Testing Machine With PLC Control System supplier
Touch Screen Panel Lens Laboratory Testing Machine With PLC Control System supplier Touch Screen Panel Lens Laboratory Testing Machine With PLC Control System supplier Touch Screen Panel Lens Laboratory Testing Machine With PLC Control System supplier Touch Screen Panel Lens Laboratory Testing Machine With PLC Control System supplier

Large Image :  Touch Screen Panel Lens Laboratory Testing Machine With PLC Control System

Product Details:

Place of Origin: CHINA GUANGDONG
Brand Name: HaiDa
Model Number: HD-25-1

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USA2500-6000/set
Packaging Details: Each set is protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: Within 20days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300set/month
Contact Now
Detailed Product Description
Drop Height (FDA Test Standard): 1.27 M Steel Ball: 16mm * 20
Capacity: 100 Pcs Of Lens Per One Test Tower You Can Load Up Three At Once Testing Procedure: 10 -- 15 Tests Per Min
System: PLC Control System With GUI (Graphic Users Interface) Controller: PLC Controller And Touch Screen Panel

Touch Screen Panel Lens Laboratory Testing Machine With PLC Control System



Introduction:

PLC Controller and Touch Screen Panel the Lens Test Instrument will test the impact of lenses to meet the applicable ANSI,FDA and European requirement. All the lenses must pass an impact test, known as the "Drop Ball Test": a 16-millimeter steel ball is dropped onto the lens from a height of 1.27 meter



Specification:

1)  5/8-inch steel ball weighing approximately 0.56 ounce
2)Dropped from a height of 50 inches upon the horizontal upper surface of the lens.
3)The ball shall strike within a 5/8 inch diameter circle located at the geometric center of the lens.
4)The ball may be guided but not restricted in its fall by being dropped through a tube extending to within approximately 4 inches of the lens.
5)To pass the test, the lens must not fracture

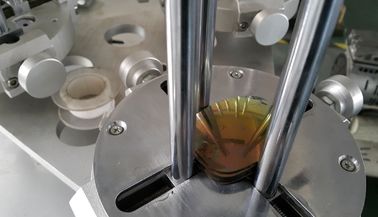

   Lens Drop Impact Tester.1.jpg

2)Drop ball System

Drop ball system includes pneumatic finger, lift synchronous belt, cleaning brush, steel ball recycling and reputing system

3) Pneumatic finger

Pneumatic finger is used to clamp and release ball.

4) Lift synchronous  belt

Lift synchronous belt delivers the pneumatic finger with steel ball to requested drop height 1.27m.

5) Cleaning brush

Cleaning brush sweep the tested lenses to recycling box

6) Steel ball recycling   and reputing System

Steel ball recycling and reputing system will sort out balls from tested lenses and return to initial drop point, wait to be clamped by cylinder finger. Reputing system will automatically supply new steel ball to continue testing once balls can not be returned to initial point.

7) PLC Controler

PLC controller and touch screen panel for easy operation system



What kinds of Lens should test?

1. Q. What are the impact testing requirements for prescription (Rx) glass lenses?

A. The manufacturer must test each finished Rx glass lens individually for impact resistance (21 CFR 801.410(c)(3)). The lens must be capable of withstanding the impact test provided in 21 CFR 801.410(d)(2) as described later in this document under “Testing Apparatus and Procedure.” You should perform testing after the lens has been edged (cut to the shape of the frame) but before the lens is put into the frame.

2.Q. What are the impact testing requirements for non-prescription (over-the-counter) glass lenses, e.g., magnifying spectacles and nonprescription sunglasses?

A. You must test a statistically significant sample of over-the-counter glass lenses from each production batch. The sample must be representative of the finished forms as worn by the wearer, including forms that are of minimal lens thickness and have been subjected to any treatment used to impart impact resistance.



Image:

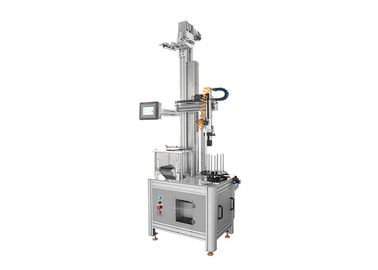

Lens Drop Impact Tester.3.jpgLens Drop Impact Tester.2.jpg
