Product Details:
Payment & Shipping Terms:
|
| Testing Hole: | Diameter 50mm, For Cable Routing | Vertical Test Space: | 1200mm Including Fixture |
|---|---|---|---|
| Compressor: | France Tecumseh Compressor | Frame Capacity: | 2000kg |
| Cooling Speed: | 1℃/min In Average (without Loading) | Test Speed: | 0.1~300mm/min (adjustable) |
| Temperature Sensor: | PT-100 Dry And Wet Bulb Sensor | Load Accuracy: | 0.5% F.S |
| High Light: | High Temperature Tensile Strength Test Machine,300mm/min Tensile Strength Test Machine |
||

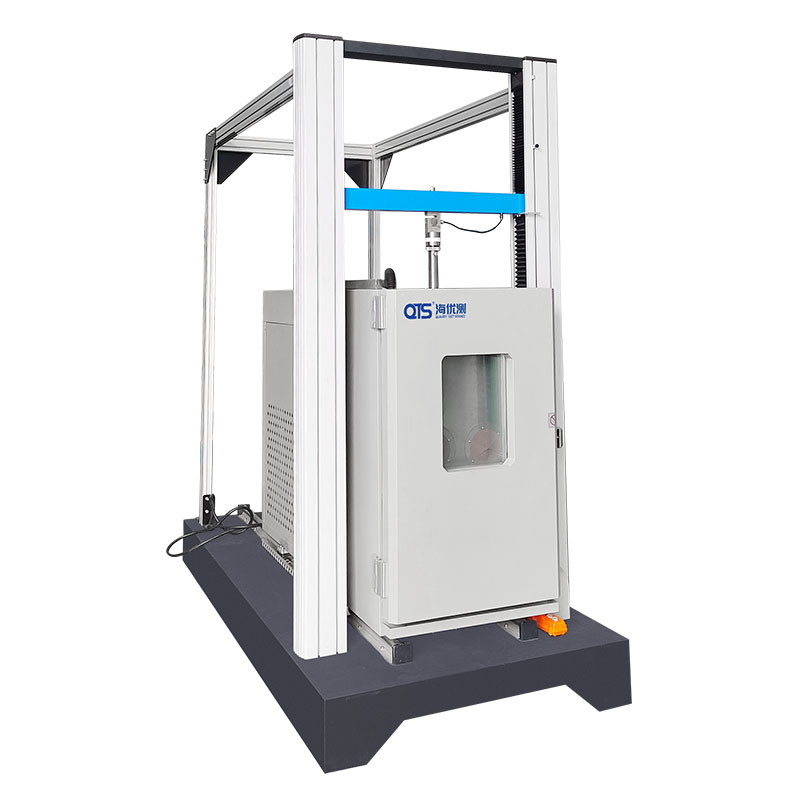

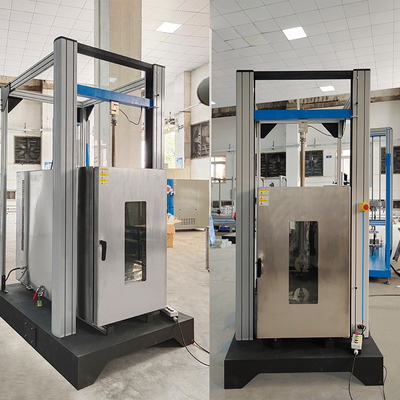

High Temperature Tensile Strength Test Machine Tensile Tester Equipment
Product Description:
Tensile Tester Machines are designed to measure the tensile strength of materials in order to evaluate their performance. These machines can test materials with a variety of properties, including heat resistance. The test speed is adjustable from 0.1 to 300mm/min, and the frame capacity is 2000kg. The heating speed is 3℃/min in average (without loading). Vertical test space is 1200mm, including the fixture. With its high-end functions and features, Tensile Tester Machines offer precise and reliable testing of materials.
Features:
Product Name: Tensile Testing Machines
Cooling speed: 1℃/min In Average (without Loading)
Testing hole: Diameter 50mm, For Cable Routing
Vertical test space: 1200mm Including Fixture
Observation window: Tempered Glass
Temperature range: ±1℃
Tensile Strength Tester
Tensile Testing Machinery
Tensile Strength Tester
Technical Parameters:
|
Product Features |
Description |
|---|---|
|
Vertical test space |
1200mm Including Fixture |
|
Observation window |
Tempered Glass |
|
Compressor |
France Tecumseh Compressor |
|
Testing hole |
Diameter 50mm, For Cable Routing |
|
External chamber material |
Stainless Steel With Paint Spray |
|
Temperature range |
±1℃ |
|
Control system |
PC With Windows 7 System |
|
Frame capacity |
2000kg |
|
Load accuracy |
0.5% F.S |
|
Heating speed |
3℃/min In Average (without Loading) |
Applications:
This machine is used to meet customer specified test requirements, which it can do tensile, tear test under specified temperature. This machine includes two parts: high & low temperature chamber and tensile tester
Haida Test Equipment Test Standards For Sharing:
Film/Plastic Film
ASTM D882: Tensile Test
ASTM F1306: Puncture Test
ASTM D1938: Trouser Tear Test
ASTM D2732: Thermal Shrinkage Test
ASTM D1709, ISO 7765-1: Free-Falling Dart Method
ASTM D1894: Static and Kinetic Coefficients of Friction
ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test
Packing and Shipping:
Packaging and Shipping of Tensile Testing Machines
Tensile testing machines are shipped in custom-made wooden crates to ensure safe and secure delivery. The crates are constructed for both air and ocean shipment. The crates are designed to reduce the machine’s exposure to shock and vibration during transit.
The crates are also designed to be easy to open and repack. All crates are clearly labeled with the machine’s model number and serial number. All components, including any accessories, are securely packed in foam to protect them from damage.
For international shipments, all crates are constructed to comply with the International Air Transport Association (IATA) regulations. The crates are also marked with the appropriate international shipping codes.
FAQ:
Q1: What is the Brand Name for Tensile Testing Machines?
A1: The Brand Name for Tensile Testing Machines is HAIDA.
Q2: What is the Model Number for Tensile Testing Machines?
A2: The Model Number for Tensile Testing Machines is HD-B607-S.
Q3: What is the Place of Origin for Tensile Testing Machines?
A3: The Place of Origin for Tensile Testing Machines is Guangdong, China (Mainland).
Q4: What Certifications does Tensile Testing Machines have?
A4: Tensile Testing Machines have ISO and CE Certifications.
Q5: What is the Minimum Order Quantity for Tensile Testing Machines?
A5: The Minimum Order Quantity for Tensile Testing Machines is 1set.
