850kg Box Compression Tester / Paper Compressive Strength Testing Machine

China 850kg Box Compression Tester / Paper Compressive Strength Testing Machine supplier
850kg Box Compression Tester / Paper Compressive Strength Testing Machine supplier 850kg Box Compression Tester / Paper Compressive Strength Testing Machine supplier 850kg Box Compression Tester / Paper Compressive Strength Testing Machine supplier

Large Image :  850kg Box Compression Tester / Paper Compressive Strength Testing Machine

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A505S-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Capacity (optional): 5T Unit (switchable): Kg, Lb, N
Load Resolution: 1/250,000 Load Accuracy: ≤0.5%
Test Space (L×W×H): 1300×1500×1200mm Speed Of Compression: 10 ± 3 Mm/min

850kg Box Compression Tester / Paper Compressive Strength Testing Machine



undefined Carton Compression Tester Video



Specifications

1.High quality with reasonable price
2.One year free aftersale service
3.Easy operation



Box Compressive Testing machine is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.



Design criteria:

TAPPI-T804,JIS-20212,GB4857.3.4,

ASTM-D642, QB/T1048, BS EN ISO 12048,

GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,

GB/T4857.4



Specifications:

850kg Paper Carton Compression Tester / Box Compressive Testing machine

Model

HD-A505S-1500

 Unit (switchable)

 Kg, Lb, N

 Capacity (optional)

2 T ,5T

Load Resolution

1/100,000

 Stroke (exclude the grips)

  400 mm

 Load Accuracy

  ≤0.5%

Test Space (L×W×H)

1500×1500×1500mm

Speed of Compression

10 ± 3 mm/min

Operation Mode

PC

Report Items

Serial number, Peak value, Average value, Designated holding pressure value; all memorable

Structure

AC Frequency Conversion Motor ( Taiwan);
Imported screw rod ;4 sensors; LED display

Dimension (L×W×H)

2370×1500×2100mm (can be custom made)

 Power

 1ø, 220v/ 50Hz

 Weight

 Approx. 850kg

Safety Devices

Overload protection, overvoltage protection & limited position protection device

Standard

TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642



Features of  Computer Servo Box Compressive Tester :

Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
 It can do test of compression, bending, pressure holding & fatigue.

With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

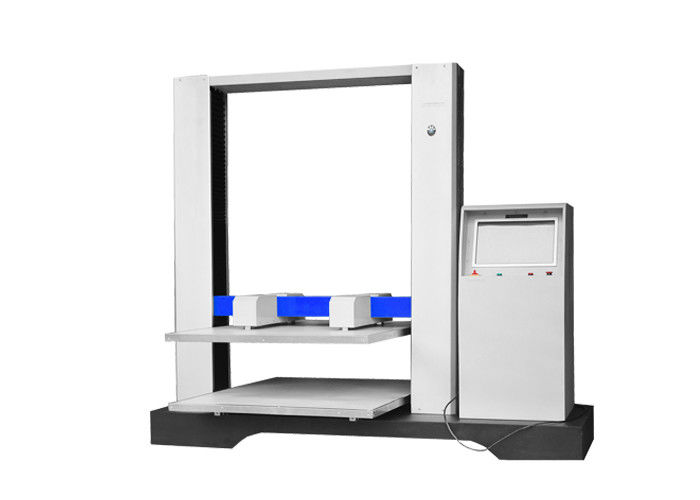

The image of Computer Servo Box Compressive Tester

850kg Box Compression Tester / Paper Compressive Strength Testing Machine



The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
