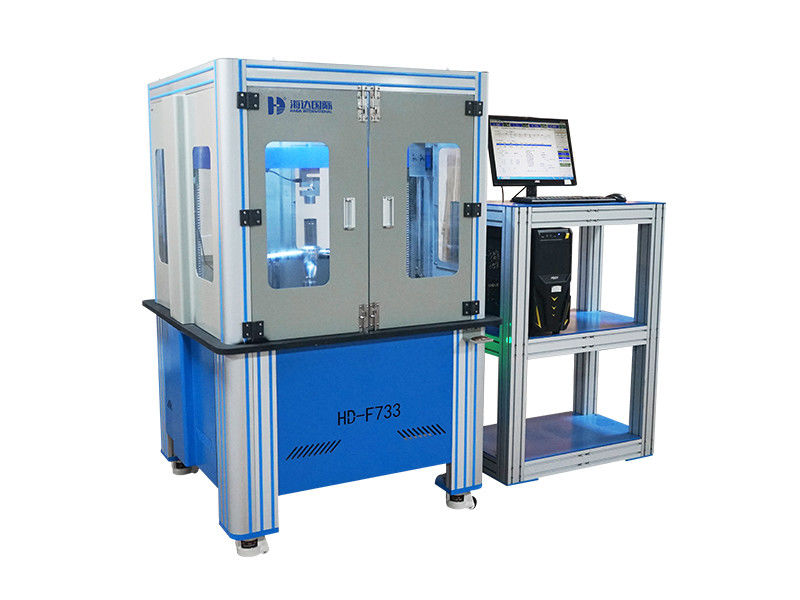

Automatic Furniture Testing Machines , Chair Vertical Force Durability Tester Manufacturer

China Automatic Furniture Testing Machines , Chair Vertical Force Durability Tester Manufacturer supplier
Automatic Furniture Testing Machines , Chair Vertical Force Durability Tester Manufacturer supplier Automatic Furniture Testing Machines , Chair Vertical Force Durability Tester Manufacturer supplier Automatic Furniture Testing Machines , Chair Vertical Force Durability Tester Manufacturer supplier

Large Image :  Automatic Furniture Testing Machines , Chair Vertical Force Durability Tester Manufacturer

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F733
Power: Electric
Port: Shenzhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Counter: 0-999,999, Memory, Output Control Impact Sandbags Diameter: 16 Inch 125 Pounds Standard Sandbbags
Static Pressure Mould Diameter: 8 Inch, 165 Pounds Briquetting Impact Speed: 10-30 Times/minute Or Specified
Static Pressure Speed: 10-30 Times/minute Or Specified Cylinder Stroke: 0-300mm

Automatic Furniture Testing Machines , Chair Vertical Force Durability Tester Manufacturer









Specifications



Chair Seating Durability Tester
used to assess seat covers in the vertical load capacity of endurance, suit all kinds of chair


Design for : Bifma X 5.1 Clause 7



Bifma X 5.1 chair seat vertical force testing machine is used for for the vertical pressure testing, destructive testing and fatigue testing use of the office chair Ipomoea base (Star Base) repeated pressure loading in setting force test cycle, as the fatigue test. Pressure on the size of the holding pressure time and cycle number of tests can be adjusted.



Product description



Chair Vertical Force Durability Tester to evaluate the ability of a chair to withstand heavy impact forces on the seat. This tester is designed for dynamic and cyclic durability seat test

Test Properties: comprehensive performance test, Assessment of seat covers in the vertical load capacity of endurance.

Specimen: the whole chair, all kinds of chair.

Test program: Composed with impact test and Static front test

Impact test: Impact the chair with 125 pounds standard sand bags at 10-30cpm speed 100000 times.

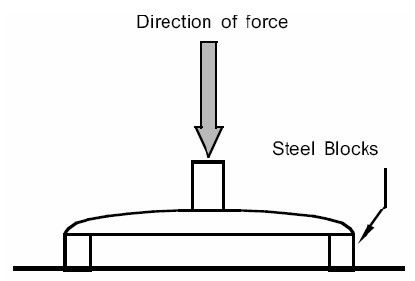

Hydrostatic test: press the chair around the corner before and after slowly with 10-30cpm speed 20000 times.

Results evaluation: The whole chair will not lose the function after testing.





The main technical parameters



Counter

0-999,999, memory, output control

Impact sandbags diameter

16 inch 125 pounds standard sandbbags

Static pressure mould diameter

8 inch, 165 pounds briquetting

Impact speed

10-30 times/minute or specified

Static pressure speed

10-30 times/minute or specified

Cylinder stroke

0-300mm

Rail height

90-135cm

Machine size

270*85*80cm

Power

1#, AC220V, 3A

BIFMA requirements

impact 100000 times+ static pressure 20000 times(left)
+static pressure 20000times (right)



Automatic Furniture Testing Machines , Chair Vertical Force Durability Tester Manufacturer



FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.



Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.



Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.



Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
