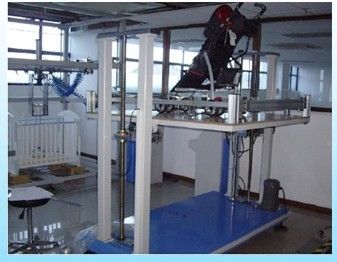

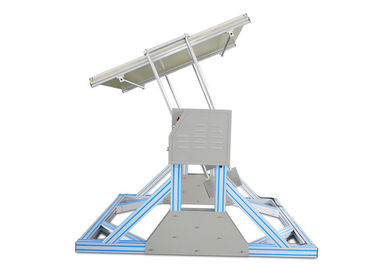

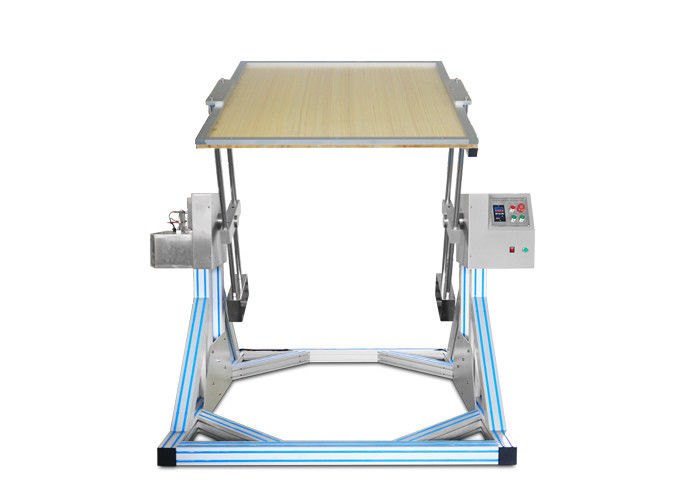

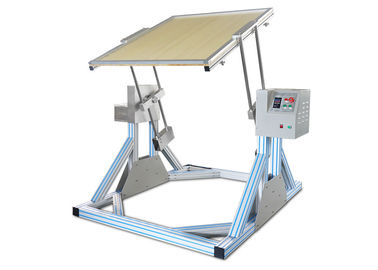

Electric Strollers Testing Machine 100 Degree Rotation Experiment Station

Electric Strollers Testing Machine 100 Degree Rotation Experiment Station
Electric Strollers Testing Machine 100 Degree Rotation Experiment Station Electric Strollers Testing Machine 100 Degree Rotation Experiment Station Electric Strollers Testing Machine 100 Degree Rotation Experiment Station Electric Strollers Testing Machine 100 Degree Rotation Experiment Station Electric Strollers Testing Machine 100 Degree Rotation Experiment Station

Large Image :  Electric Strollers Testing Machine 100 Degree Rotation Experiment Station

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-J208
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Design Standards: EN1888 Control Modes: Manual Control
Test Surface Material: P-60 Sandpaper Angle Modulation: Motor
Angle Display: Digital Angle Accuracy Tolerance: <1 Degree
High Light:

dynamic test machine

,

strollers testing equipment



Electric Strollers Testing Machine 100 Degree Rotation Experiment Station





Testing purposes:



the dynamic, the infant carrier or seat fixed on the frame of the device must not break down, loose or may not have any damage in the test or test.



Parameters:



Design standards EN1888
Control modes manual control
Test surface material P-60 sandpaper
Angle Modulation Motor
Angle Display Digital
Angle Accuracy Tolerance <1 degree
Maximum weight  100KG
Angle 0 ° - 20 °


Test status:


Basket or seat mounted on the frame. Operation basket or seat fixed on the frame 200 fixtures.
Load block A on the basket at the bottom of the class 0 car seat, or the B load block on the seat inside or F load block on the 0 + class car seat and fasten it to the center.
If the car bed design can carry more than one child using multiple test load placed on each one in each child take a regional.
Wheel or axle wagon is fixed in a rigid platform, this platform around the axis parallel to the ground.
Slowly accompanied by the test load car clockwise and counterclockwise rotation of 100 degrees to enable the fixtures to test load transferred to the frame. Test steps:
1, the test weight is placed on the baby inside the car, the four wheels of the stroller on the table;
2, manually wheel turn in the same direction 100 °, back in situ, and then reverse direction to turn 100 °;

3. Observe the testing process, with the changes of position by force, strollers parts of the force to tear cause damage;



Electric Strollers Testing Machine 100 Degree Rotation Experiment Station 0
