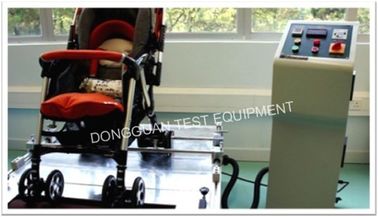

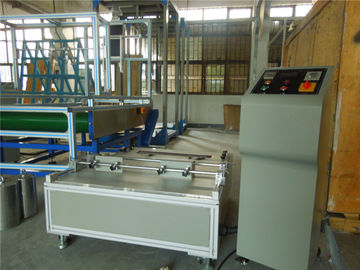

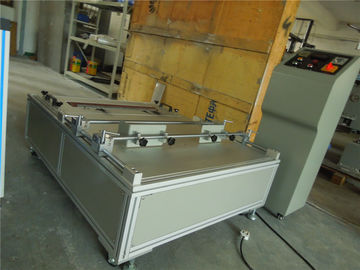

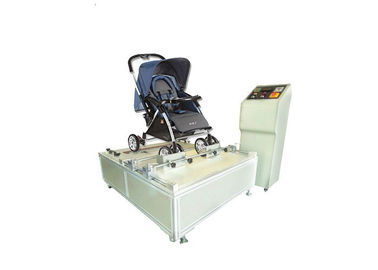

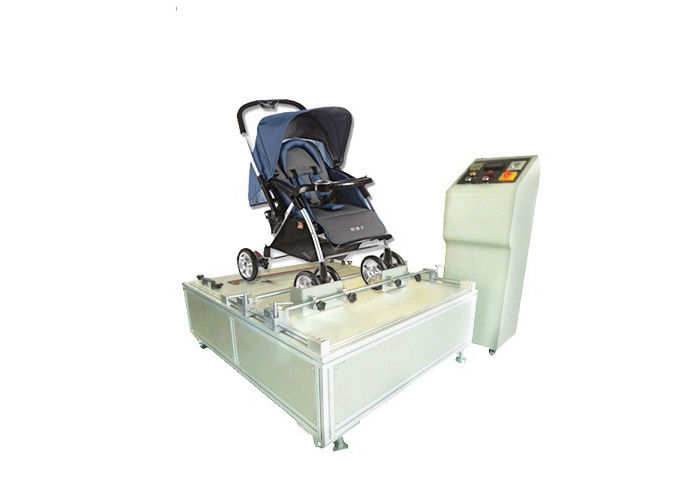

EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test

China EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test supplier
EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test supplier EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test supplier EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test supplier EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test supplier

Large Image :  EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-J206
Power: Electric
Port: ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Power: Electronic Power Supply: 220 V , 1000w
Design Criteria: EN 1888 Clause 10 . 2 . 7 Weight: 600kg
Effective Width: Max.1000mm Bearing Load: Max.100LB



EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test





1. Specifications



1 . Standards : EN1888
2 . High quality with competitive price
3 . Short delivery period



2. Abrasion Testing Machine:



The brake abrasion testing machine is used to test the wheel abrasion property on the baby stroller with brake

Power : 220 V , 1000w

Design criteria : EN 1888 Clause 10 . 2 . 7

The parameters can be customized according to your special requirements .



3. Parameters



Experiment work 1,2 station
Test speed 5km/h±0.1km/h
Drive horsepower AC380V*3 diameter*3HP
Up and Down Pitch Max.300mm
Effective width Max.1000mm
Test count LCD 0-999,999
Bearing load Max.100LB
Power AC380V, 5kw
Machine size 3300*1400*1900mm
Weight 600kg
Shape of impact block Trapezium, halfarc or specified.



EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test



EN1888 Strollers Testing Machine For Wheel Brake Abrasion Test



Our company Introduction:



HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
