Anti Corrosive Environmental Test Chambers Salt Spray Corrosion Tester

China Anti Corrosive Environmental Test Chambers Salt Spray Corrosion Tester supplier
Anti Corrosive Environmental Test Chambers Salt Spray Corrosion Tester supplier Anti Corrosive Environmental Test Chambers Salt Spray Corrosion Tester supplier Anti Corrosive Environmental Test Chambers Salt Spray Corrosion Tester supplier

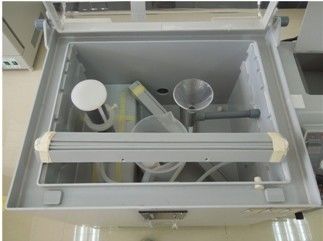

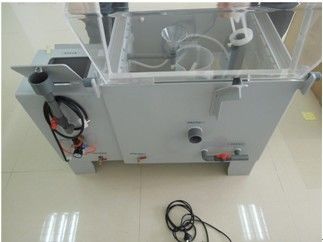

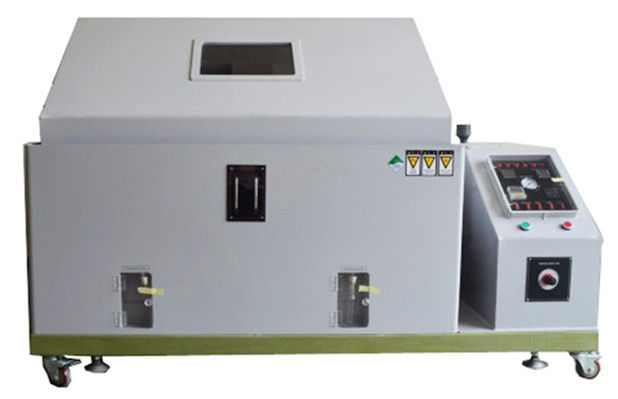

Large Image :  Anti Corrosive Environmental Test Chambers Salt Spray Corrosion Tester

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E808-120

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Lab Volume: 600L PH: Salt Spray Method ( NSS ACSS6 . 5~7 . 2 ) Corrosion-resistant Testing Method ( CASS ) 3 . 0~3 . 2
Test Chamber Temperature: Salt Spray Method ( NSS ACSS ) 35±1°C Corrosion-resistant Testing Method ( CASS ) 50±1°C Saturated Air Barrel Temperature: Salt Spray Method ( NSS ACSS ) 47±1°C Corrosion-resistant Testing Method ( CASS ) 63±1°C
Power: AC220V , 30A Accessories: Testing Salt/ Measuring Tank/ Equipment Each 1 Set



Anti Corrosive Environmental Test Chambers Salt Spray Corrosion Tester





Product Description



Salt Spray Tester adapted to the surface treatment of various materials , including paint , electroplating , organic and inorganic coating , anode processing , antirust oil and so on , after these anti-corrosive treatment to test the corrosion resistance of their products .



Introduction:

Salt Spray Corrosion Testing Tester is the use of salt spray corrosion way to detect corrosion, respectively, the reliability of the sample, salt spray refers to the atmosphere by diffusion system composed of tiny droplets of salt, artificial environment of three anti-series one of many companies need to simulate the destructive product of marine climate surrounding the product caused by salt spray chamber so the line should run.



Features:
1. Local temperature and humidity inside and outside the box are used for A-level gray high-corrosive PVC, for salt spray, copper acetate, and other test specifications Test
2. It uses the A-level German imports of gray PVC material.
3. It uses sophisticated Class A gray PVC material designed "V" shape long, products tested by the 15 ° -30 ° angle be adjusted.
4. It uses a 5mm thick transparent imported high toughness PVC board, bending method designed to cover 100 degree ridge-type transparent with power failure memory function of time, so after the original call time to complete the remaining time of the experimental work, with a double over-temperature protection, water shortage warning, ensure safety
5. According to JIS, ASTM, CNS, GB standard parameter setting operation.



Main Technical Parameter



items Specification
Inner Box Size ( L×W×H ) 120×100×50 cm
Outside Box Size ( L×W×H ) 190×130×140 cm
Equipment Material Both inside & outside shell adopt imported P . V . C rigid plastic board , and tank cover uses imported transparent P . V . C . rigid plastic board
Temperature Range 35°C~55°C
Temperature Fluctuations ≤±0 . 5°C
Temperature Uniformity ≤±2°C
Temperature Precision ±1°C

Test Chamber Temperature
Salt Spray Method ( NSS ACSS ) 35±1°C
Corrosion-resistant Testing Method ( CASS ) 50±1°C
Saturated air Barrel Temperature Salt Spray Method ( NSS ACSS ) 47±1°C
Corrosion-resistant Testing Method ( CASS ) 63±1°C
Brine Temperature 35°C±1°C
Spray Quantity 1 . 0~2 . 0 ml / 80cm2 / hr
PH Salt Spray Method ( NSS ACSS6 . 5~7 . 2 )
Corrosion-resistant Testing Method ( CASS ) 3 . 0~3 . 2
Lab Volume 600L
Brine Tank Capacity 40L
Power AC220V , 30A
Multiple Safety Protection Devices Current discharge protection , over pressure protection , over temperature protection , over load fuse protection
Accessories Testing Salt/ Measuring tank/ Equipment each 1 set
Standard CNS : 3627 , 3385 , 4159 , 7669 , 8886 ;
JIS : D0201 , H8502 , H8610 , K5400 , Z2371 ;
ISO : 3768 , 3769 , 3770 ;
ASTM : 8117 , B268
