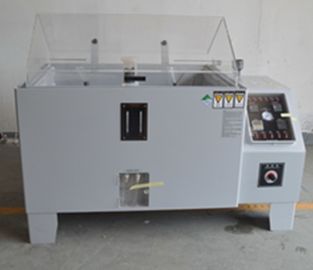

Salt Spraying Corrosion Test Chamber / Environmental Test Chambers for P . V . C Rigid Plastic Board
1.Introduction:
Salt spraying test chamber adapted to the surface treatment of various materials , electroplating , organic and inorganic coating , anode processing , antirust oil and so on , after these anti-corrosive treatment to test the corrosion resistance of their products .
2 . Specifications :
Salt Spraying Test Chamber
| Model | HD-E808-60 Salt sprayingtest chambers |
| Inner Box Size ( W×H×D) | 60x45x40 cm |
| Outside Box Size ( W×H×D) | 107x118x60 cm |
| Equipment Material | Both inside & outside shell adopt imported P . V . C rigid plastic board , and tank cover uses imported transparent P . V . C . rigid plastic board |
| Temperature Range | 35°C~55°C |
| Temperature Fluctuations | ≤±0 . 5°C |
| Temperature Uniformity | ≤±2°C |
| Temperature Precision | ±1°C |
Test Chamber Temperature |
Salt Spray Method ( NSS ACSS ) 35±1°C Corrosion-resistant Testing Method ( CASS ) 50±1°C |
| Saturated air Barrel Temperature | Salt Spray Method ( NSS ACSS ) 47±1°C Corrosion-resistant Testing Method ( CASS ) 63±1°C |
| Brine Temperature | 35°C±1°C |
| Spray Quantity | 1 . 0~2 . 0 ml / 80cm2 / hr |
| PH | Salt Spray Method ( NSS ACSS6 . 5~7 . 2 ) Corrosion-resistant Testing Method ( CASS ) 3 . 0~3 . 2 |
| Lab Volume | 108L |
| Brine Tank Capacity | 15L |
| Power | AC220V , 10A |
| Multiple Safety Protection Devices | Current discharge protection , over pressure protection , over temperature protection , over load fuse protection |
| Accessories | Testing Salt/ Measuring tank/ Equipment each 1 set |
| Standard |
CNS : 3627 , 3385 , 4159 , 7669 , 8886 ; |
