HAIDA EN527-3 Furniture Testing Machines Chair comprehensive Fatigue testing machine HD-F738

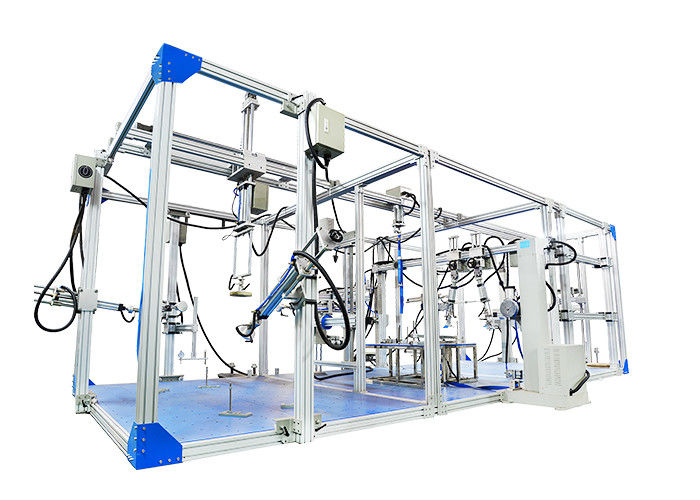

Large Image : HAIDA EN527-3 Furniture Testing Machines Chair comprehensive Fatigue testing machine HD-F738

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-F738

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

The Chair Seat Surface Load Capacity:	5~200kg	The Chair Back Loading Capacity:	5~100kg
The Handrail Height Adjustment Range:	550mm ~ 950mm	The Maximum Size Of Specimen Width:	1000mm
Test Speed:	10 ~ 30 /min	The Desktop Impact:	Impact Head Weight 25kg
The Backrest And Armrest Impact:	Angle Can Be Adjusted
Highlight:	fatigue testing equipment , impact testing machine

HAIDA EN527-3 Furniture Testing Machines Chair comprehensive Fatigue testing machine (HD-F738)

Product introduction

2 groups of pneumatic actuator can be 10 degree tilt or vertical movableinstallation fixed installation . The other 2 groups horizontally mounted actuator as the chair legs thrust test .

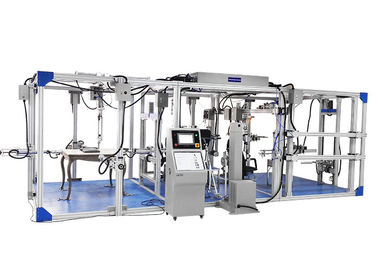

HAIDA EN527-3 Furniture Testing Machines Chair comprehensive Fatigue testing machine HD-F738 0

Detailed description

A comprehensive testing machine , furniture main technical parameters :

Comprehensive test furniture combination is composed of several parts :

1 , the chair seat surface load capacity	5~200kg .
2 , the chair back loading capacity	5~100kg
3 , 2 sets of pneumatic actuators can be 10 degree tilt or vertical movableinstallation fixed installation . The other 2 groups horizontally mounted actuator as the chair legs thrust test , the two groups of horizontally mounted brake adjustment range for a minimum of 20mm , up to 250mm , maximum thrust is 60kg . brake is on the left and right sides can work independently or simultaneously .
4 , the handrail height adjustment range	550mm ~ 950mm
5 , adjustable thrust , pressure holding time adjustable
6 , the horizontal handrail
7 , the maximum size of specimen width	1000mm
8 , test speed	10 ~ 30 /min
Testing machine bottom drill with a plurality of rows of screw holes , install different accessories and fixed test conditions and convenient
10 , each group of electric actuator is equipped with quick joint , convenientreplacement of different loading block and clamp
11 , the controller of PLC and color touch screen , operation interface is simple and reasonable , the graphical representation is more convenient to use , anyoperator
12 , the machine is equipped with five sets of pneumatic brake , respectively , a set of vertical device , 4 groups of level device , each independent adjustable speed and thrust . The trip is 500mm
Before and after the brake 13 , vertical device can adjust the position , such asclean from 100 mm to 900 mm
Four sets of brake 14 , level device , can be up and down a position adjustmentand move around , flexibly with requirement of different test position
15 , the maximum tension value	150kg
16 , the maximum value of thrust ( level )	50kg
17 , the maximum pressure value ( vertical )	150kg
18 , the desktop impact	impact head weight 25kg
19 , the backrest and armrest impact	angle can be adjusted
20 , can be added with a computer , recording the stress , displacement variation .

EN527-3 , BSEN1730 , EN1335 , EN1022 , EN1728

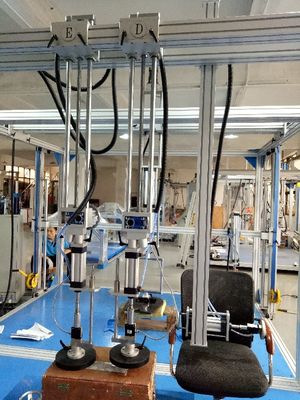

The chair backrest strength durability test

Chair legs strength test - forward / lateral loading

Pedal ( ring ) - the vertical static load test

Pedal ( ring ) durability test

Arm durability test instrument ( weight : 102kg )
