|The Chair Seat Surface Load Capacity:||5~200kg||The Chair Back Loading Capacity:||5~100kg|
|The Handrail Height Adjustment Range:||550mm ~ 950mm||The Maximum Size Of Specimen Width:||1000mm|
|Test Speed:||10 ~ 30 /min||The Maximum Tension Value:||150kg|
|The Maximum Value Of Thrust ( Level ):||50kg|

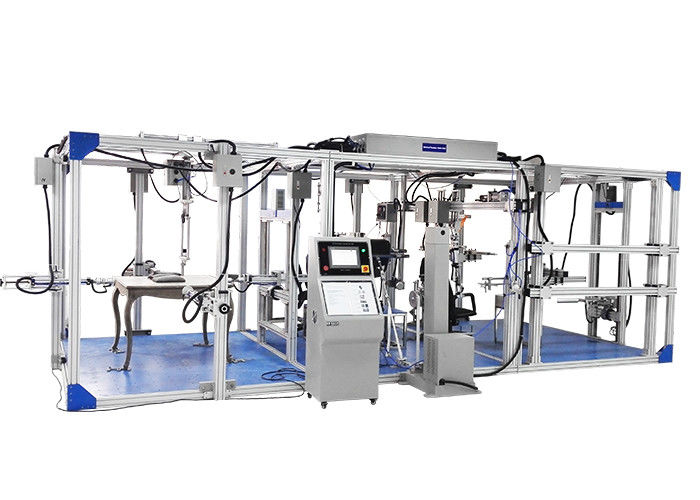

Furniture compression testing machines / horizontal tensile testing machine
2 groups of pneumatic actuator can be 10 degree tilt or vertical movableinstallation fixed installation . The other 2 groups horizontally mounted actuator as the chair legs thrust test .
A comprehensive testing machine , furniture main technical parameters :
Comprehensive test furniture combination is composed of several parts :
|1 , the chair seat surface load capacity||5~200kg .|
|2 , the chair back loading capacity||5~100kg|
|3 , 2 sets of pneumatic actuators can be 10 degree tilt or vertical movableinstallation fixed installation . The other 2 groups horizontally mounted actuator as the chair legs thrust test , the two groups of horizontally mounted brake adjustment range for a minimum of 20mm , up to 250mm , maximum thrust is 60kg . brake is on the left and right sides can work independently or simultaneously .|
|4 , the handrail height adjustment range||550mm ~ 950mm|
|5 , adjustable thrust , pressure holding time adjustable|
|6 , the horizontal handrail|
|7 , the maximum size of specimen width||1000mm|
|8 , test speed||10 ~ 30 /min|
|Testing machine bottom drill with a plurality of rows of screw holes , install different accessories and fixed test conditions and convenient|
|10 , each group of electric actuator is equipped with quick joint , convenientreplacement of different loading block and clamp|
|11 , the controller of PLC and color touch screen , operation interface is simple and reasonable , the graphical representation is more convenient to use , anyoperator|
|12 , the machine is equipped with five sets of pneumatic brake , respectively , a set of vertical device , 4 groups of level device , each independent adjustable speed and thrust . The trip is 500mm|
|Before and after the brake 13 , vertical device can adjust the position , such asclean from 100 mm to 900 mm|
|Four sets of brake 14 , level device , can be up and down a position adjustmentand move around , flexibly with requirement of different test position|
|15 , the maximum tension value||150kg|
|16 , the maximum value of thrust ( level )||50kg|
|17 , the maximum pressure value ( vertical )||150kg|
|18 , the desktop impact||impact head weight 25kg|
|19 , the backrest and armrest impact||angle can be adjusted|
|20 , can be added with a computer , recording the stress , displacement variation .|
EN527-3 , BSEN1730 , EN1335 , EN1022 , EN1728
The chair backrest strength durability test
Chair legs strength test - forward / lateral loading
Pedal ( ring ) - the vertical static load test
Pedal ( ring ) durability test
Arm durability test instrument ( weight : 102kg )
