|Capacity:||200kg||Unit Switch:||Kg , N , LB|
|The Pressure Plate:||Diameter 200mm||Bottom Fillet:||R1mm|
|The Following Platforms:||420 × 420mm||Test Speed:||100 ± 20mm/min|

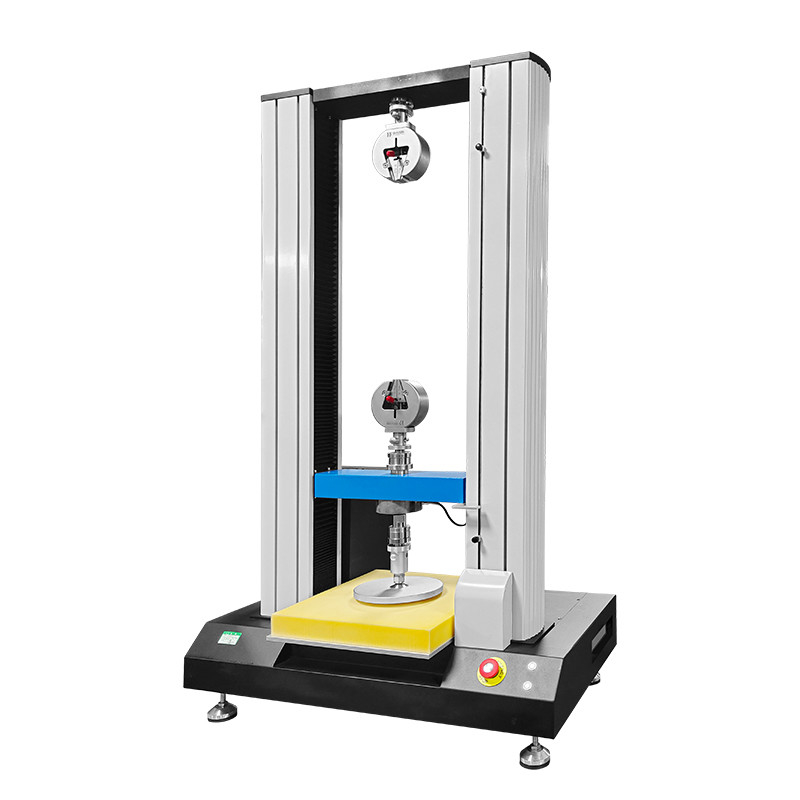

Sponge Furniture Testing Machines Foam Indentation Hardness Testing Machine
Sponge indentation hardness testing machines compression testing machine is also known as sponge , foam indentation hardness testing machine ,and can do tensile metallic and non-metallic , polymer materials , compression , bending , detection of low cycle fatigue and other projects can be according to customer product requirements according to GB , ISO , ASTM , JIS , EN and other standards for the preparation , to automatically strike the biggest test , fracture strength , yield strength , tensile strength , compressive strength , flexural strength , elastic modulus , elongation , constant elongation stress , elongation and other parameters given stress .
Measurement principle :
The sample is placed between the upper and lower platen , the pressure plate at a predetermined speed compression specimens down to a certain size when national standards concavity A method ( B method , C Act ) as required , on which the load cell to sense the pressure back to the computer processing and display , so the measured pressure sponge , foam and other materials such as depression sample hardness .

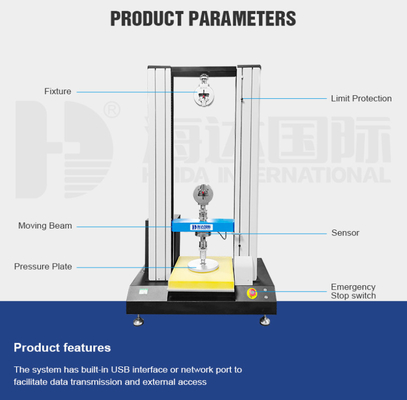

Technical parameters :
|Control||computer control ;|
|Display||computer display ;|
|Induction method||Precision load cells ;|
|Unit switch||Kg , N , LB ;|
|The pressure plate||Diameter 200mm|
|bottom fillet||R1mm ;|
|The following platforms||420 × 420mm|
|holes diameter 6mm , spacing 20mm ; Maximum stroke||200mm ;|
|Test speed||100 ± 20mm/min|
|Power Source||AC inverter motor ;|
|Transmission||precision screw ;|
|Power supply||single-phase , 220V , 50Hz/60Hz , 2 . 5A ;|
Design Standards :
1, the amount of depression set in advance, through the timing circuit to accurately control the amount of depression;
2, easy to use: the use of high-precision pressure sensors and large-scale integrated circuits;
3, test methods: In addition to the national standards of the test method, but also free to set the test method;
4, pressure plate speed: the default speed of 100MM / MIN; can be set according to the need to run speed;
5, transmission: precision ball screw, measuring no noise;
6, the thickness of the measurement: to automatically calculate the measured sponge thickness;
7, the curve shows: you can simultaneously display and retrieve the test time, pressure and pressure into the depth of the curve;
8, data transfer: the mouse on the curve at any point, you can real-time display time, pressure and pressure into the depth;
9, data preservation: the experiment can be done for each time to save the data, but also can set a good test method to save;
10, the test process: real-time display test process;
Different Models of The Machine
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
